Specification
Types

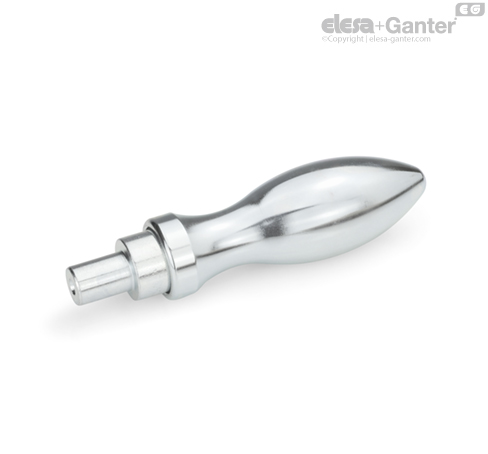

- Type D: With plain shaft

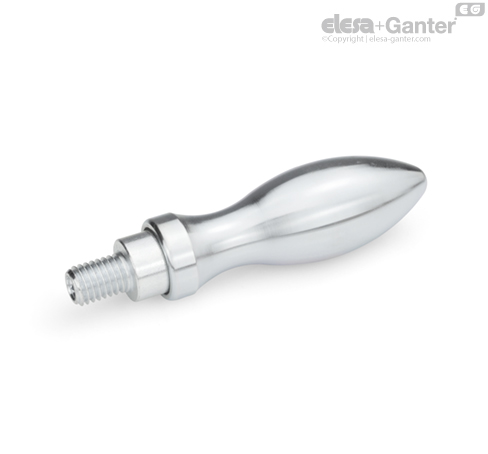

- Type E: With threaded stud
Handle
- Zinc plated, blue passivated
- Plastic, Polyamide (PA) KT
- Operating temperature up to 110 °C
Spindle
Steel
Zinc plated, blue passivated
Information
Revolving handles DIN 98 type D are supplied unassembled so that the shaft can be press fitted or screwed into a tapped blind bore prior to assembly.
Light taps with a soft-head hammer in the axial direction affix the handle to the axle with sufficient firmness that it is held in place axially while still remaining turnable.
