Specification
Types
- Type H: vertically adjustable
- Type B: horizontally adjustable
- Type HB: vertically and horizontally adjustable
Zinc die casting
plastic coated
black, RAL 9005, textured finish SW
silver, RAL 9006, textured finish SR
Stainless Steel A4
German Material No. 1.4408
matte shot-blasted GS
Pin
Stainless Steel AISI 316Ti
Information

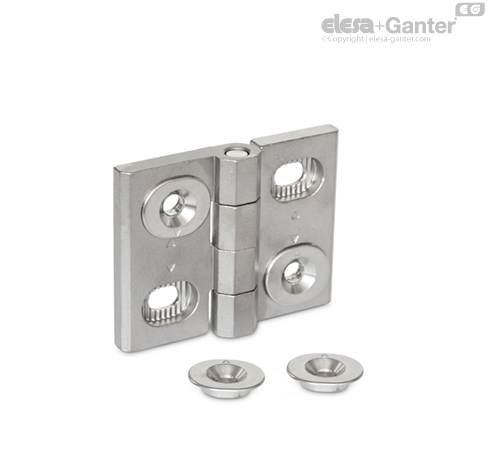

With hinges GN 127 doors and covers can be positioned snugly and in a finely adjusted manner by moving the adjusting bushings. In this way, door gaps can be readjusted and manufacturing tolerances can be compensated. The arrowheads mark the middle of the adjustable range w.
The Stainless Steel variants are also generally suited for applications under especially aggressive conditions.
