Specification
Type
Type C: Fixing from the back side

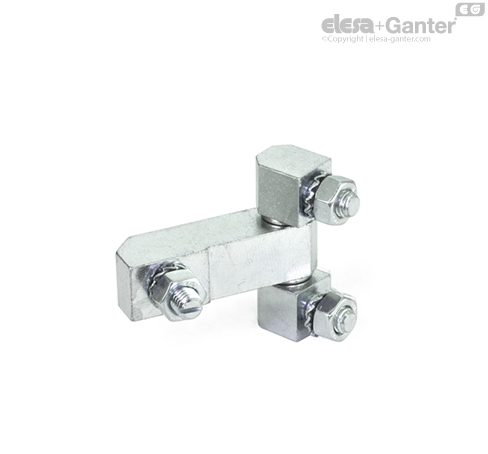

Version in Steel
Hinge
Steel zinc plated, blue passivated ST
Pin
Brass, nickel plated
Washer
Brass, nickel plated
Hexagon nut ISO 4032
Steel zinc plated, blue passivated
Serrated washer DIN 6797 for securing screws
Steel zinc plated, blue passivated

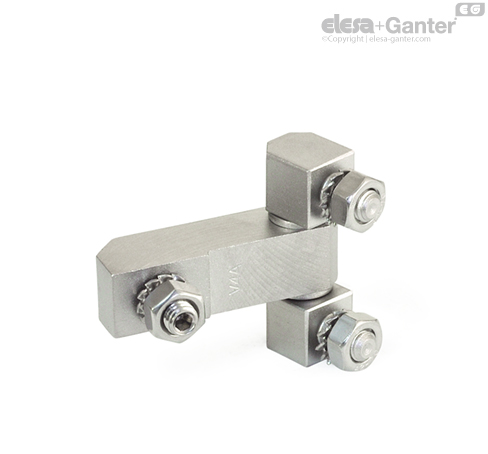

Version in Stainless Steel

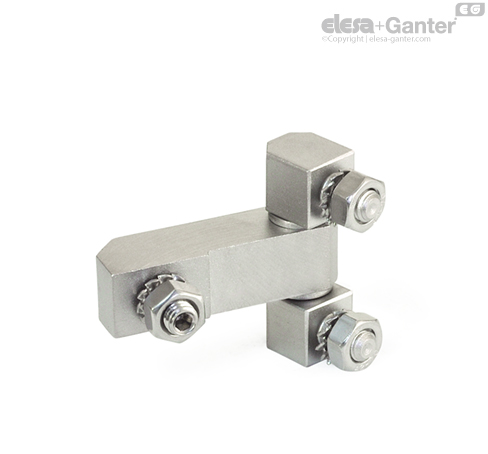

- Stainless Steel AISI 303 NI
- Stainless Steel AISI 316L A4
Hexagon nut ISO 4032
Stainless Steel AISI 304
Serrated washer DIN 6797 for securing screws
Stainless Steel AISI 304
Information
Hinges GN 129.2 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.
With the fixing from the inside, they are especially suitable for doors and trap doors which must not be detachable from the outside as an anti-tamper device.
