Specification
Types

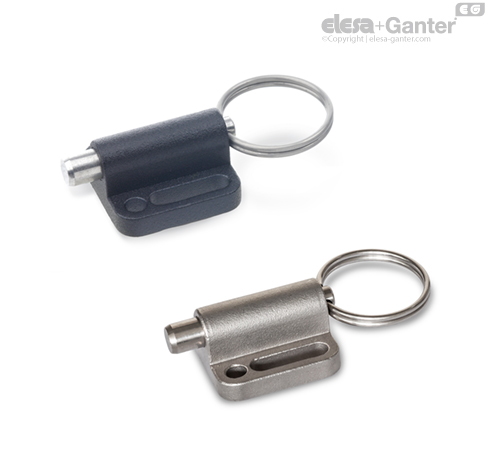

- Type A: With lifting ring
- Type B: Without rest position, with knob
- Type C: With rest position, with knob
Guide
Powder coated
Black, textured finish
- Stainless steel precision casting NI
AISI CF-8
Plain, matte shot-blasted
Plunger pin
Stainless steel AISI 303
Pressure spring
Stainless steel AISI 301
Lifting ring / wire loop
Stainless steel AISI 301
Knob
Plastic (Polyamide PA)
Information
Indexing plungers GN 417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots.
Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°Indexing. A notch keeps the plunger in this position.
Type D has a reinforced wire loop, making it especially suited for remote actuation, e.g. by Bowden cable.
The stainless steel versions allow the indexing plungers to be used in more aggressive environments.
