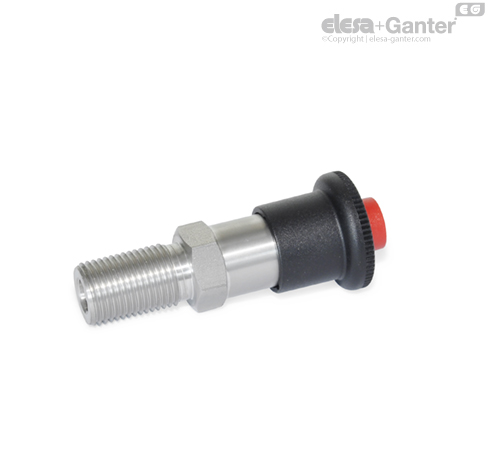

GN 414.1-NI Indexing plungers Indexing plungers

Indexing plungers GN 414.1 with click-type safety lock are used when the plunger pin is to be briefly prevented from protruding. When the pin is retracted to its end position, the button engages with a clearly audible click.

The safety lock can be unlocked only by exerting axial pressure on the red safety pushbutton, with the plunger pin then returning to its starting position by spring force.

• Range of indexing plungers

• ISO-Fundamental Tolerances -

• Stainless Steel characteristics

• Plastic characteristics
