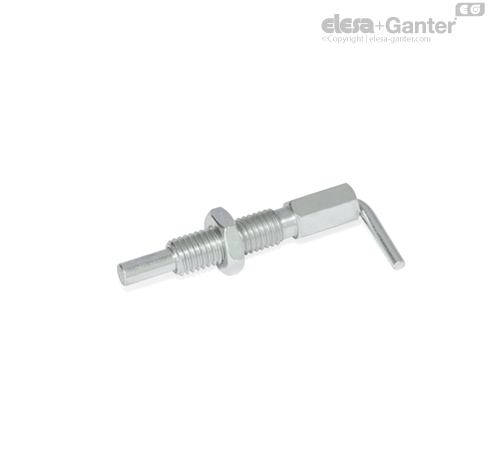

GN 7017 Indexing plungers Indexing plungers, Steel

GN 7017 indexing plungers are activated through a lever and are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.

The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position.

During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut

• Range of indexing plungers

• ISO-Fundamental Tolerances

• Stainless Steel characteristics

• Load rating information
