Specification
Version in Steel precision casting ST
Powder coated
Black, RAL 9005, textured finish SW
Version in Stainless Steel precision casting NI
AISI CF-8
Blank, matte shot-blasted GS
Information

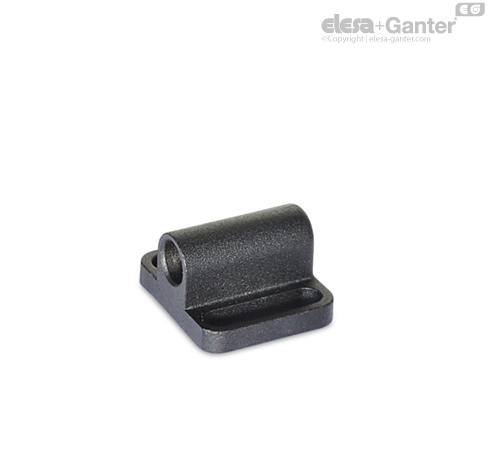

Locators GN 417.1 are used for positioning the indexing pins of indexing plungers GN 417.
They are mounted using slots that permit adjustment parallel to the mounting hole. For example, this allows gap dimensions to be adjusted for doors or tolerance errors to be compensated. Washers make it easier to mount the parts using the slots.
