Specification
Types
- Type B: without rest position
- Type C: with rest position
Version in Steel ST
zinc plated, blue passivated
Version in Stainless Steel AISI 303 NI
Pin
Stainless Steel AISI 303
Spring
Stainless Steel AISI 301
Knob Plastic (Polyamide PA)
Information

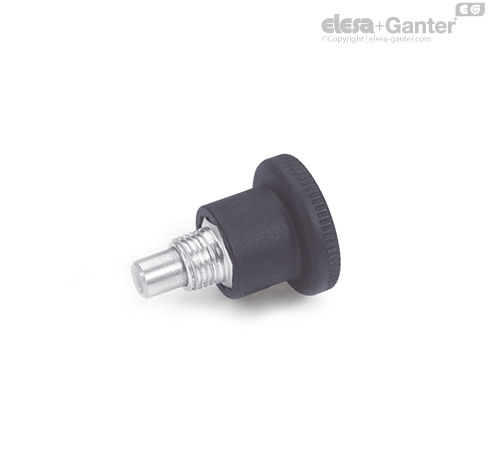

Mini indexing plungers GN 822 are distinguished for their small dimensions. They have been designed for installation in thin walled sheet metal constructions.
They are inserted into position by holding them by the serrated knob. The spanner flats on the lock nut are revealed when retracting the pin, so that the mini indexing plunger can be easily tightened by means of a fork spanner.
With Type C the knob can be turned by 30° and a notch keeps the knob in this position.
Accessory
Distance bushings GN 609.5 are to be ordered seperately.
