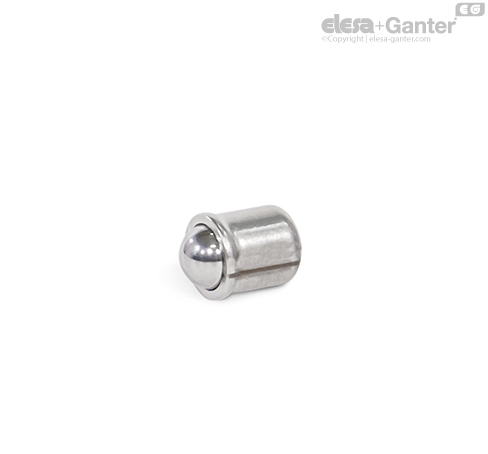

GN 614-NIL Spring Plungers Stainless steel, light spring load

Types

• Type NI: Stainless steel, standard spring load

• Type NIL: Stainless steel, light spring load

• Type NIS: Stainless steel, high spring load

• Type MS: Housing brass, ball stainless steel, standard spring load

• Type KU: Housing plastic, ball stainless steel, standard spring load

• Type KD: Housing plastic, ball plastic, standard spring load

Types NI / NIL / NIS

• Housing

• Stainless steel AISI 305

• Sheet-metal

• Ball

• Stainless steel AISI 420C

• Hardened

Identification

• Type NIL: Housing with 1 longitudinal marking

• Type NIS: Housing with 2 longitudinal markings

Type MS

• Housing

• Brass, turned

• Ball

• Stainless steel AISI 420C, hardened

Type KU

• Housing

• Plastic, polyacetal (POM)

• Operating temperature up to 50 °C

• Blue

• Ball

• Stainless steel AISI 420C, hardened

Type KD

• Housing

• Plastic, polyacetal (POM)

• Operating temperature up to 50 °C

• Blue

• Ball

• Plastic, polyacetal (POM)

• Operating temperature up to 50 °C

• White

Pressure spring

Stainless steel AISI 631
