Specification
Version in Steel
Types
- Type S: Bolt steel, standard spring load
- Type SS: Bolt steel, high spring load
- Type K: Bolt plastic, standard spring load
Type S / SS
- Operating temperature up to 250 °C
Type K
- Bolt plastic, polyacetal (POM)
- Operating temperature -30 °C to +50 °C
Pressure spring
Stainless steel AISI 631
Identification of type SS
Housing with 2 longitudinal markings
Version in Stainless Steel
Types
- Type SN: Bolt stainless steel, standard spring load
- Type SSN: Bolt stainless steel, high spring load
- Type KN: Bolt plastic, standard spring load

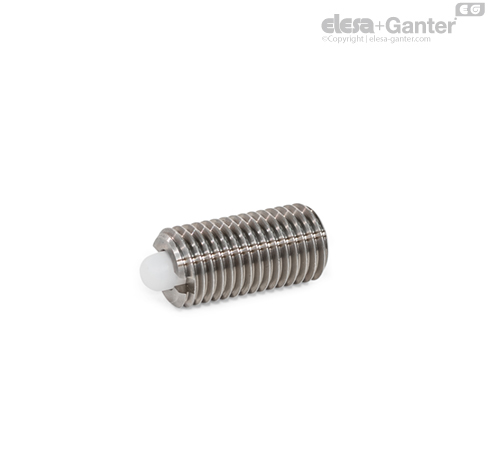

- Type KSN: Bolt plastic, high spring load
Housing
Stainless steel AISI 303
Type SN / SSN
- Housing stainless steel AISI 303
- Bolt stainless steel AISI 303, nitrided
- Operating temperature up to 250 °C
Type KN / KSN
- Housing stainless steel AISI 303
- Bolt plastic, polyacetal (POM)
- Operating temperature -30 °C to +50 °C
Pressure spring
Stainless steel AISI 631
Identification of type SSN / KSN
Housing with 2 longitudinal markings
Information
Spring plungers GN 616 are used as detents as well as for push-on and push-off applications and ejectors.
The slot on the plunger side is provided for blind hole applications. A special screw driver GN 611.5 is available (see table).
