Specification
Types
- Type L: left indexing cam
- Type R: right indexing cam
Version in Steel ST
Guide
Steel precision casting
zinc plated, blue passivated ZB
zinc plated and plastic coated
black, textured finish SW
Latch
Steel, zinc plated, blue passivated
Plunger pin
Steel, zinc plated, blue passivated
Spring
Stainless Steel AISI 316Ti

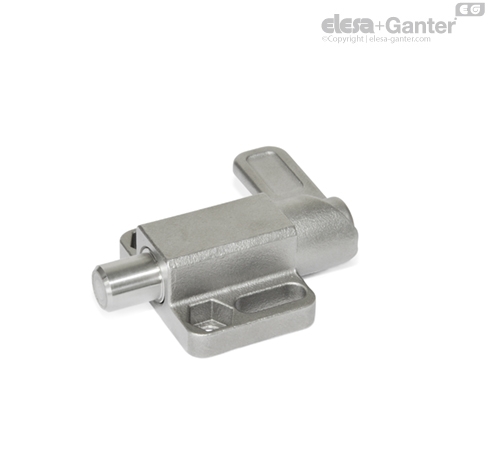

Version in Stainless Steel A4
Guide / Latch
Stainless Steel precision casting A4
AISI 316
Plunger pin
Stainless Steel AISI 316
Spring
Stainless Steel AISI 316Ti
Information
With spring latches GN 722.3, the plunger pin is retracted over the curve of the guide by a 180° turn of the latch. The notch at the upper end of the curve causes the latch to be held in place if the plunger pin needs to be kept temporarily from protruding. The ZB and SW versions are designed for applications in steel construction, whereas the A4 stainless steel version is suitable for use in particularly aggressive environments.
The dimensional tolerances between plunger pin and guide are selected so that the functional reliability is guaranteed even after welding, applying a corrosion protection layer or in case of contamination.
For fastening, slotted or hexagonal mounting holes allow the use of socket cap screws DIN 912 and hexagon screws or nuts according to DIN 931 or DIN 934.
