Specification
Types
- Type KN: Stainless steel, standard spring load
- Type KSN: Stainless steel, high spring load
Housing
- Stainless steel AISI 316L
Ball
Silicon nitride, black
Pressure spring
Identification of type KSN:
Housing with 2 longitudinal markings
Information

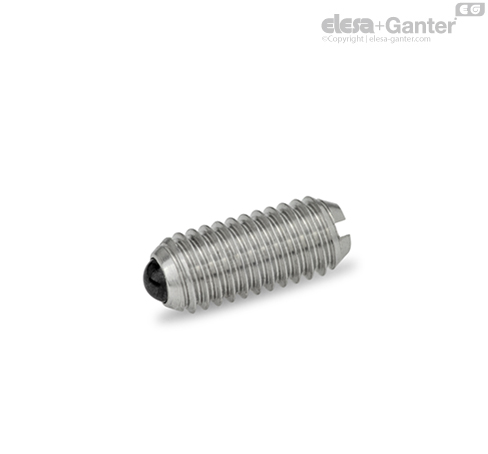

GN 615.5 Stainless steel spring plungers are used for locking as well as for pressure and hold-off functions.
Due to the selection of materials, the stainless steel spring plungers are suitable for use in highly corrosive environments. In addition the ceramic ball is low wearing, anti-magnetic and electrically insulating.
