DIN 808-ST Universal Joints with Friction Bearing / Needle Bearing Steel, friction bearing

The permissible r.p.m. of universal joints with friction bearing DIN 808 is to a large extent dependent on the type of application such as load, duration, angular disposition as well as lubrication . For over 1000 r.p.m. universal joints with needle bearing should be used. For continuous use ample lubrication is essential. This achieved by fitting the joint with a grease filled gaiter GN 808.1.

The permissible r.p.m. of universal joints with needle bearings DIN 808 is higher than for those with friction bearings, but is still dependent on the load, duration of use as well as angular disposition. Ideal applications allow speeds of up to 4000 r.p.m . Needle bearings give the universal joints at 3° to 5° angular disposition a considerably higher degree of efficiency than those fitted with friction bearings. The needle bearings have a permanent lubrication and thus do not require servicing. Information regarding the selection of universal joints with needle bearing.

Since the moveable parts are not surface treated, i.e. not case-hardened, the possibilities of application of these universal joints are much more limited compared to the ones made of standard steel. Therefore, the guide lines for the selection of universal joints with friction bearing  according to the diagram may be applied at a limited extent only. Rotational speeds over 200 min may become critical. For continuous use of the stainless steel universal joints, ample lubrication is very important. This achieved by fitting the joint with a grease filled gaiter GN 808.1. The order example refers to universal joints with equal bores both ends d₂ or s.

• With other or unequal bores

• Keyway DIN 6885

• Cross holes GN 110.1

• ISO-Fundamental Tolerances

• Stainless Steel Characteristics



The single universal joints transfer the initial smooth rotation as an irregular rotation. One revolution of the drive shaft via single universal joint will cause the driven shaft to accelerate and decelerate twice. The extent of the irregularity depends on the operating angle ß.

In order to obtain a smooth rotation of the driven shaft two single or one double universal joint is required. In such cases where minor irregularities in the movement are acceptable or where minor operating angles are the norm a single universal joint will do.







Furthermore the bearings must be as close as possible to the universal joints.

For continuous operation of universal joints with friction bearings adequate lubrication is essential. If drip lubrication is not possible they should be lubricated at least once a day. It is also possible to fit the universal joint with a gaiter GN 808.1 which can be filled with oil or grease.

Universal joints with friction bearing, Type EG



The table shows the transferable output N and/or torques M of universal joints DIN 808, type EG (single friction bearing) in relation to the RPM n.

The values are only applicable to a constant speed of rotation, constant load and an operating inclination angle of max. 10°. They are not applicable to universal joints in Stainless Steel.

For larger inclination angles ß a nominal output N increased by the correction coefficient k and/or a nominal torque M has to be selected (see example below).

Conversion formular:

Torque M [Nm] = 9550 N[kW]/n [min-¹]

Output N [kW] = M [Nm] x n [min-¹]

1 kW = 1.36 PS / 1 PS = 0.736 kW

Output to be transferred N = 0.65 kW

R.p.m. n = 230 min-¹

Angle of inclination ß = 10°

Correction coefficient k = 1

Indicative output N‘= Nominal output N

Intersection point P results from 0.65 kW and 230 min-¹ (which corresponds to a torque of 27 Nm).

The next size up universal joint corresponding to point P is the model with a diameter d₁ = 25.

Example 2

Torque to be transferred M = 27 Nm

R.p.m. n = 230 min-¹

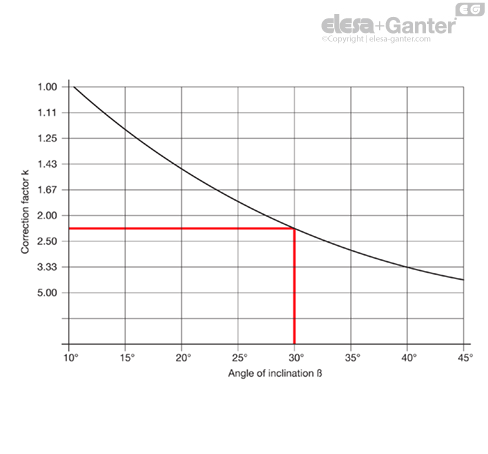

Angle of inclination ß = 30°

Correction coefficient k = 2.25

Indicative torque = 2.25 x 27 Nm = 60 Nm

Intersection point P₁ results from 61 Nm and 230 min-¹ (which is equivalent to an indicative output N = 1.47 kW).

The next size up universal joint corresponding to P₁ is the model with a diameter d₁ = 36.



Universal joints with friction bearing, Type EW



The table shows the transferable output N and/or torques M of universal joints DIN 808, type EW (single jointed, needle bearing) in relation to the RPM n.

The values are only applicable to a constant speed of rotation, constant load and an operating inclination angle of max. 10°.

For larger inclination angles ß a nominal output N increased by the correction coefficient k and/or a nominal torque M has to be selected (see example below).

Conversion formular:

Torque M [Nm] = 9550 N[kW]/n [min-¹]

Output N [kW] = M [Nm] x n [min-¹]

1 kW = 1.36 PS / 1 PS = 0.736 kW

Output to be transferred N = 5.5 kW

R.p.m. n = 230 min-¹

Angle of inclination ß = 10°

Correction coefficient k = 1

Indicative output N‘= Nominal output N

Intersection point P results from 5.5 kW and 2300 min-¹ (which corresponds to a torque of 23 Nm).

The next size up universal joint corresponding to point P is the model with a diameter d₁ = 28.

Example 2

Torque to be transferred M = 23 Nm

R.p.m. n = 2300 min-¹

Angle of inclination ß = 18°

Correction coefficient k = 1.43

Indicative torque = 1.43 x 23 Nm = 33 Nm

Intersection point P₁ results from 33 Nm and 2300 min-¹ (which is equivalent to an indicative output N = 7.9 kW).

The next size up universal joint corresponding to P₁ is the model with a diameter d₁ = 32.
