Worm gear reducers GN 3975 can transmit high torque despite their very compact dimensions. They can readily be used for a multitude of applications, such as incline adjustments or to change the direction of shaft rotation.

The numerous fastening holes allow for simple mounting in any orientation or position. The parallel keys can take any angular positions.

Depending on the gear ratio, there may be no static self-braking between the worm screw and worm wheel, meaning that the worm wheel can be turned out of a resting state by a torque coming from the output end.

Technical information

Mechanical Features

Circumferential backlash at the drive shaft	1° ± 0.5°
Shaft direction of rotation	Any
Worm screw direction	Left
Life expectancy	1.000 hours under full load at a rotational speed of 500 rpm,
	assuming the gear box is operating for 20% of every 5 minutes (guide value)
	(1 minute of operation + 4 minutes break) at an ambient temperature of 20 °C
Maintenance	Permanent lubrication with grease, maintenance-free

m₁	Gear ratio	Max. input torque in Nm*			Max. output torque in Nm*			Input side		Output side		Efficiency in %	Selfbraking
m₁	Gear ratio	at 100 min^-1	at 500 min^-1	at 1000 min^-1	at 100 min^-1	at 500 min^-1	at 1000 min^-1	Max. radial force in N**	Max. axial force in N***	Max. radial force in N**	Max. axial force in N***	Efficiency in %	Selfbraking
20	5	2.9	2.3	1.7	10	8	6	200	200	500	500	70	-
20	13	2.1	1.8	1.5	15	13	11	200	200	500	500	56	-
20	15	1.5	1.3	1	12	10	8	250	250	500	500	52	-
20	18	1.1	0.9	0.7	11	9	7	250	250	500	500	55	-
20	23	0.9	0.7	0.5	10	8	6	250	250	500	500	50	-
20	30	0.6	0.5	0.4	8.5	7	5.5	350	350	500	500	45	-
20	40	0.35	0.31	0.31	5.5	4.8	4	400	400	500	500	39	x
20	65	0.24	0.2	0.2	4.5	3.8	3	500	500	500	500	29	x
30	5	5.4	4.9	4.3	19	17	15	400	300	800	800	70	-
30	10	3.4	3.1	2.8	20	18	16	400	300	800	800	58	-
30	17	2.2	1.9	1.8	17	15	14	400	400	800	800	46	-
30	20	1.7	1.6	1.4	15	13.5	12	800	400	800	800	43	-
30	25	1.3	1.2	1.1	13.5	12	11	800	800	800	800	41	-
30	34	1.2	1.1	1	12	11	10	600	800	800	800	29	-
30	45	0.9	0.8	0.8	10.5	9.5	9	700	600	800	800	25	-
30	64	0.5	0.4	0.3	8.5	7.5	6	700	600	800	800	27	x

* Input side speed

** at axial force = 0

*** at radial force = 0

Assembly Instructions

Do not exert any forces onto the housing or into the bearings during assembly. Use of the threaded holes d₈ in the shaft is recommended. The use of a corresponding coupling is recommended to compensate for manufacturing-related shaft offsets and runout tolerances as well as for damping vibrations and shocks.

Application example

Ask and we will answer as fast as possible

*Mandatory field

Product name

*Name

*Email

*Country

Company

Phone

*Message

I agree to the Privacy Notice *

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.

Housing Aluminum

Continuous drive

Housing Aluminum

Continuous drive

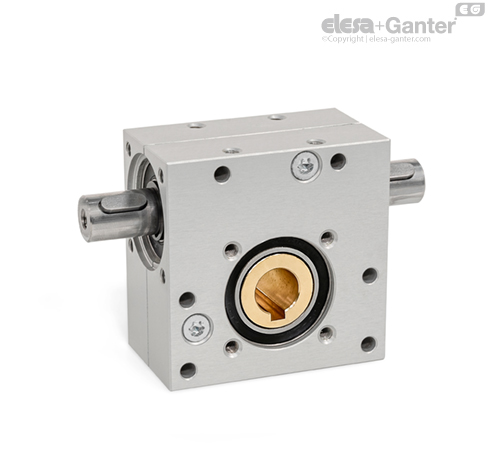

GN 3975-B Worm Gear Reducers Continuous drive
