GN 115-WOE-ZD-CP
GN 115-WOE-ZD
Latches
with Operating Elements
Housing collar chrome plated
with Operating Elements
Housing collar chrome plated

78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Lock housing
Zinc die casting
Black, RAL 9005, textured finish SW
Operating elements
Plastic (Polyamide PA)
Black, matte finish
Zinc die casting
Powder coated
Black, RAL 9005, textured finish
Cover cap (Type RG, KG, HG, LG)
Plastic (Polyamide PA)
Light gray, matte finish
Other parts
Steel, zinc plated, blue passivated
Protection class IP 65
Latches GN 115-WOE-ZD lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.
Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.
Latches GN 115-WOE-ZD are supplied with loosely enclosed latch arm.

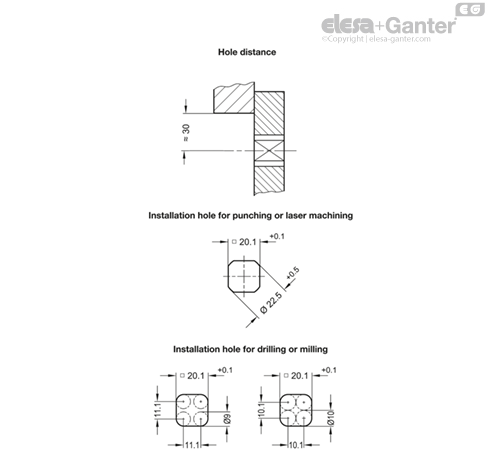

For installation, set a hole in the door, cover or hatch as shown in the outline drawing.
Once assembled, the latch is pushed through the bore diameter from the front. The hex nut can then be pushed over the latch from the back and bolted in place.
The required installation bore in the door leaf, is usually generated by punching or laser machining in series production.
The installation bore diameter can also be created by drilling or milling as shown in the outline drawings.
For small series and steel sheets below 2 mm thickness, the sheet metal punches GN 123 are the tool of choice.
