Specification
Lockable version:
Types
- Type SC: Operation with key (same lock)
- Type SU: Operation with key (different lock)
Identification no.
No. 1: Operation, in drawn position, at the top left
No. 2: Operation, in drawn position, at the top right
Front frame, zinc die casting, plastic coated
black, RAL 9005, textured finish SW
silver, RAL 9006, textured finish SR
Tray, plastic
Key
Nickel silver with plastic hand piece
other parts
Steel zinc plated, blue passivated
Not lockable version:
Types
- Type DK: Operation with triangular spindle (DK7)
- Type VK7: Operation with square spindle A/F7
- Type VK8: Operaton with square spindle A/F8
- Type SCH: Operation with slot
- Type VDE: Operation with double bit

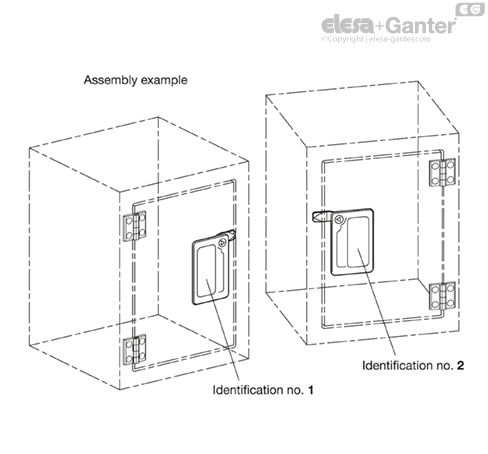

Identification no.
- No. 1: Operation, in drawn position, at the top left
- No. 2: Operation, in drawn position, at the top right
Front frame, zinc die casting, plastic coated
black, RAL 9005, textured finish SW
silver, RAL 9006, textured finish SR
Tray, plastic
Operating part
Zinc die casting
- plastic coated, black (for SW)
other parts
Steel zinc plated, blue passivated
Information
Latches with gripping tray GN 115.10 are used in applications which require a moulded recess in addition to the latching mechanism, e.g. if operating elements are not allowed to protrude for reasons of space.
A rotary movement limited to 90° moves the latch behind the frame, with the run-up bevels at the latch making it easier to close the door.
Latches with different cranks cover a latch distance A from 4 to 50 mm.
The types with a different lock are available in more than 200 variants, whose key is marked by numbers.
The scope of delivery includes a separately enclosed latch as well as two keys removable in both end positions.
Construction and Assembly Instructions

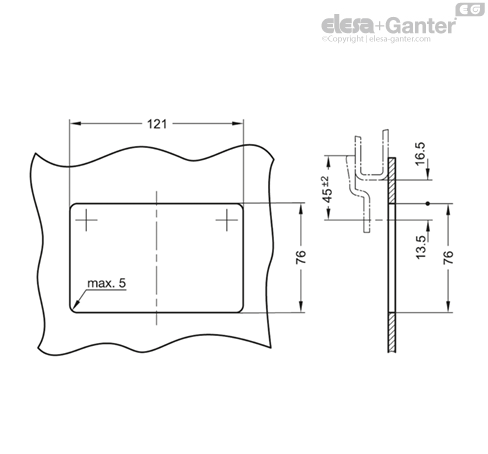

Before assembly, a nick must be made in the door as shown in the drawing.
Depending on position of the latch, the 16.5 mm edge spacing between frame and nick must be ensured sideways and/or top and bottom to make sure that the latch is positioned behind the frame.

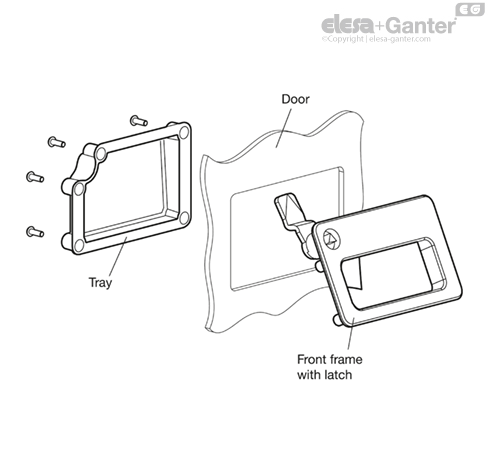

For the assembly, insert the front frame together with the pre-assembled latch from the front through the nick of the door by tilting.
Place the plastic tray from the back onto the bore pegs of the front frame.
The M4x12 fillister-head screws included are then screwed in from the rear and tightened to fix and wedge the whole unit in place. The minimum screw-in depth of the screw is guaranteed with a maximum door wall thickness of 7 mm.
