Specification
Types

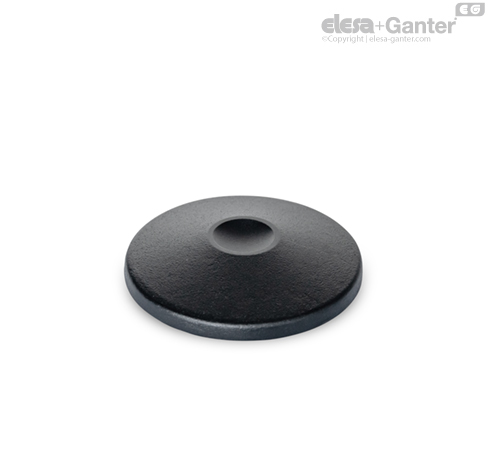

- Type A: without rubber underlay

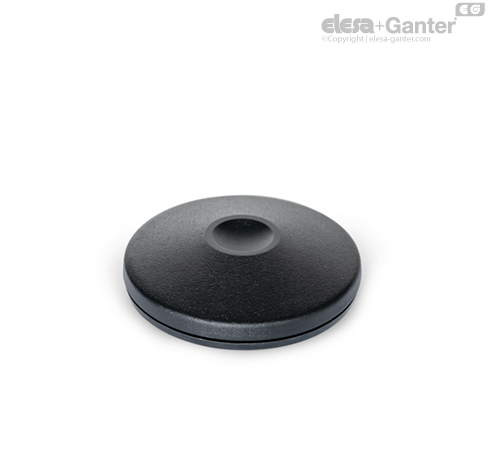

- Type B: with rubber underlay
Steel
plastic coated
black, RAL 9005, textured finish
Rubber underlay, inlaid
black, NBR
85±5 Shore A
O-ring, inlaid
black, NBR
≈ 70 Shore A
Information
Foot plates GN 36.1 are characterized by their solid construction and large variety. They are used especially on large and heavy systems and machines.
The foot plates are ideal for use with customized adjustment or compensation stems that have the spherically shaped absorption radius “r” at the contact point. DIN screws or threaded studs with chamfer or pointed nose used as an alternative reduce the load capacity due to the lack of full-surface contact.

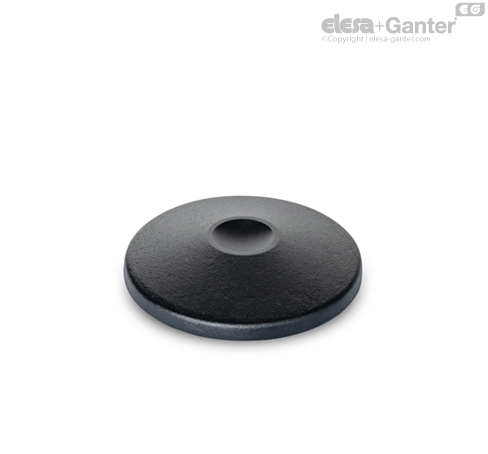

Type B with rubber underlay prevents slipping to the side, protects delicate surfaces and dampens vibrations and tremors. Type C with O-ring provides a seal over the ground to prevent the build-up of dirt under the foot.
