GN 17-W
GN 17
Leveling Feet
Stainless Steel, FDA compliant

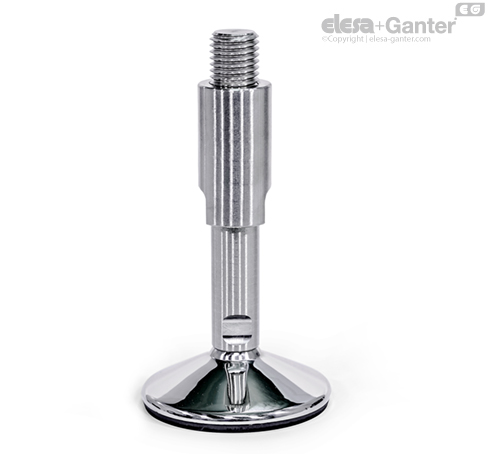

With adjustable sleeve, covered thread, wrench flat at the bottom
Stainless Steel, FDA compliant
With adjustable sleeve, covered thread, wrench flat at the bottom

78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Base plate
Stainless steel AISI 304
Threaded stud
Stainless steel AISI 303
Hex nut ISO 4032
Stainless steel AISI 304
Rubber pad
Acrylonitrile butadiene rubber (NBR)
Leveling feet GN 17 are suitable for use in aggressive environments.
The inclined surfaces for liquid runoff and the high surface quality of the base plate simplify cleaning and prevent the accumulation of dust or dirt. The FDA-compliant and vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used in food-processing areas or the pharmaceutical industry, for example.
The leveling feet are supplied assembled and cannot be disassembled.
d1 | d2 | Static load Fs in kN | - | - | - |
- | - | Versions of threaded studs | - | - | - |
- | - | S / SK | T / TK | V / VK | W |
60 | M 8 | 8 | - | - | - |
60 | M 10 | 8 | - | - | - |
60 | M 12 | 14 | - | - | - |
60 | M 16 | - | 14 | 14 | 14 |
80 | M 8 | 8 | - | - | - |
80 | M 10 | 8 | - | - | - |
80 | M 12 | 14 | - | - | - |
80 | M 16 | - | 14 | 14 | 14 |
80 | M 20 | - | 32 | 32 | 32 |
80 | M 24 | - | 36 | 36 | 36 |
100 | M 8 | 8 | - | - | - |
100 | M 10 | 8 | - | - | - |
100 | M 12 | 16 | - | - | - |
100 | M 16 | - | 24 | 24 | 24 |
100 | M 20 | - | 26 | 26 | 26 |
100 | M 24 | - | 28 | 28 | 28 |
120 | M 20 | - | 26 | - | - |
120 | M 24 | - | 26 | - | - |
120 | M 30 | - | 26 | - | - |
The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.
Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.
Also, the spindle strength is assumed to be ≥ 500 N/mm2).
The details given on strength are non binding guide values without any liability. In general, they do not constitute a warranty of quality.
The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.
Versions of threaded studs | |
![]() | ![]() |
S / SK: External hex at the bottom at d2 M 8, M 10, M 12 | T / TK: Wrench flat at the bottom at d2 M 16, M 20, M 24, M 30 |
![]() | ![]() |
V / VK: External hex at the top and wrench flat at the bottom at d2 M 16, M 20, M 24 | W: Covered thread and wrench flat at the bottom at d2 M 16, M 20, M 24 |
