Specification
Type (Base plate)
Type A1: Steel, zinc plated, rubber inlaid, black
Type A5: Steel, plastic coated black, rubber inlaid, black
Version
- Version S: Without nut, external hex at the bottom
- Version SK: With nut, external hex at the bottom
- Version U: Without nut, hex socket at the top and wrench flat at the bottom
- Version UK: With nut, hex socket at the top and wrench flat at the bottom

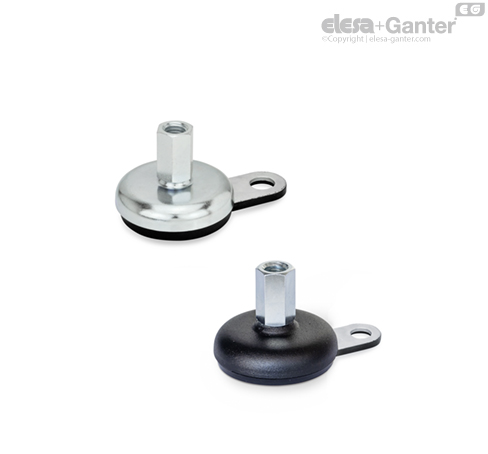

- Version X: External hex with internal thread
Base plate, steel sheet metal
Steel, zinc plated, blue passivated
Steel, powder coated
Black, RAL 9005
Flange, sheet metal
Steel, zinc plated, blue passivated
Threaded stem
Steel, zinc plated, blue passivated
Hex nut ISO 4032
Steel, zinc plated, blue passivated
Rubber pad, inlaid
Black, NBR (Perbunan®)
80±5 Shore A
Information
Leveling feet GN 32 will be delivered mounted and are not removable.
Load rating of leveling feet
Information
The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate. For the values given in the table, the strain relief may result in minor deformations of the base plate.
Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.
Also, the spindle strength is assumed to be ≥ 500 N/mm2.
The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.
The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.
| d1 | d2 | Static load in kN | - | - |
| - | - | Versions of threaded stem | - | - |
| - | - | S / SK | U / UK | X |
| - | - | Rubber black | Rubber black | Rubber black |
| 50 | M 8 | 8 | - | 8 |
| 50 | M 10 | 10 | - | 13 |
| 50 | M 12 | 12 | - | 16 |
| 50 | M 16 | - | 16 | 16 |
| 60 | M 8 | 8 | - | 8 |
| 60 | M 10 | 10 | - | 13 |
| 60 | M 12 | 12 | - | 16 |
| 60 | M 16 | - | 16 | 16 |
| 80 | M 8 | 8 | - | 8 |
| 80 | M 10 | 10 | - | 12 |
| 80 | M 12 | 12 | - | 12 |
| 80 | M 16 | - | 12 | 12 |
| 80 | M 20 | - | 12 | 12 |
| 80 | M 24 | - | 12 | - |
| 100 | M 8 | 8 | - | 8 |
| 100 | M 10 | 10 | - | 11 |
| 100 | M 12 | 11 | - | 11 |
| 100 | M 16 | - | 11 | 11 |
| 100 | M 20 | - | 11 | 11 |
| 100 | M 24 | - | 11 | - |
| 120 | M 20 | - | 20 | 20 |
| 120 | M 24 | - | 20 | - |
| 120 | M 30 | - | 20 | - |
