Specification
Types
- Type OZ: Without centering step (smooth)
- Type MZ: With centering step
- Type AV: With external serration
- Type IV: With internal serration
Identification no.
No. 2: With stainless steel socket cap srew DIN 912
Aluminum
Powder coated
Black, RAL 9005, textured finish SW
Sleeve bearing
Plastic (PTFE)
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information

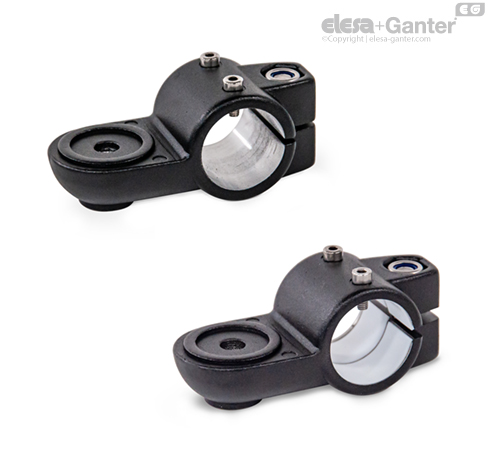

Swivel clamp linear actuator connectors GN 278.1 are based on swivel clamp connectors. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.
With the screw location z, the play of the guide bore d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.
For quick clamping without tools, the socket cap screw can be replaced by the adjustable hand lever GN 911 listed in the table as accessory.
