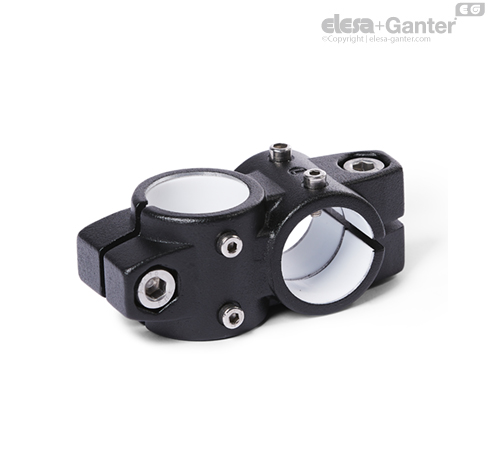

GN 132.2 Two-Way Linear Actuator Connectors With sleeve bearing

Two-way linear actuator connectors GN 132.2 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

With the screw locations z, the play of the guide bores d₁ / d₂ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911  listed in the table as accessories.
