Specification
Types
- Type B: Ball steel, smooth contact face
- Type R: Ball steel, serrated contact face
- Type K: Ball plastic, smooth contact face
- Tensile strength class 10.9
Type B and R:
Steel hardened (54+2 HRC)
Type K:
Plastic (Polyacetal POM)
O-Ring
Rubber NBR (Perbunan®)
Information

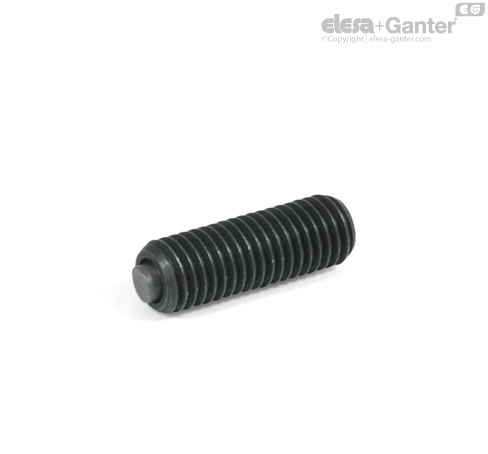

Clamping pads GN 709.8 are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop. The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10°. It is also secured against further twisting.
The O-ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.
