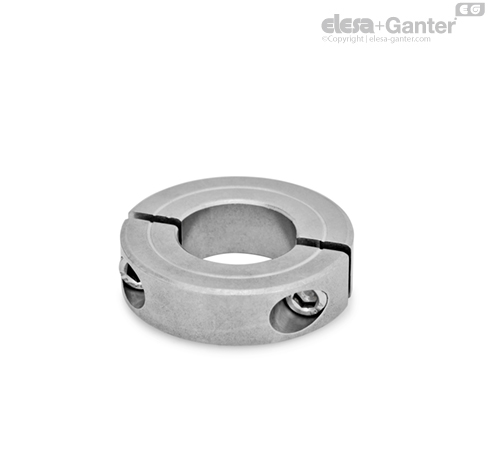

GN 707.2-NI Split Shaft Collars Stainless Steel

Split shaft collars GN 707.2 correspond in measurement to the semi-split shaft collars GN 706.2. They are used when an axial assembly is not possible. These shaft collars can safely and simply be assembled by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. The surface of the shaft or the axle is not damaged.

For size d₁ = 16 to 36, d₃ is a through hole; starting from d₁ = 42, d₃ is a threaded blind bore.
