Specification
Types
- Type A: Thrust pad surface plane, without plastic cap
- Type K: Thrust pad surface plane, with plastic cap
- Type P: Thrust pad surface with detent, without plastic cap
- Stainless Steel AISI 304 NI
Retaining spring
Stainless Steel AISI 301
Plastic cap (Polyacetal POM)
- temperature resistant up to 100 °C
Information

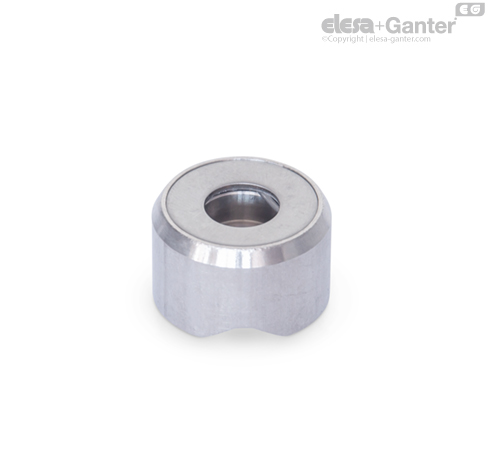

Thrust pads GN 6311.1 are used in conjunction with grub screws fitted with thrust point (grub screws DIN 6332 , tommy screws DIN 6304 and DIN 6306 to transmit clamping force. They align themselves on uneven and non-parallel surfaces and thus prevent the rotating force being transmitted to the workpiece.
The plastic cap (type K) prevents damage to delicate workpieces.
The unique shape of the retaining spring permits easy insertion and removal of grub screws into or from the thrust pad.
Thrust pads GN 6311.1 can be used in conjunction with DIN 6332 grub screws as levelling feet.
