Specification
Types

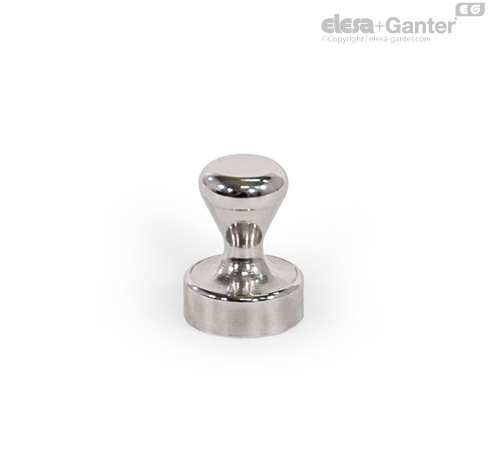

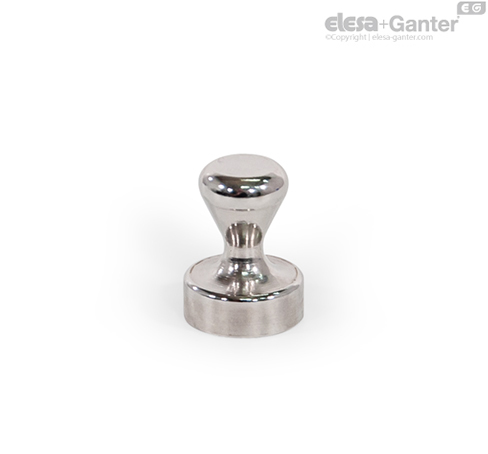

- Type A: Without rubber underlay

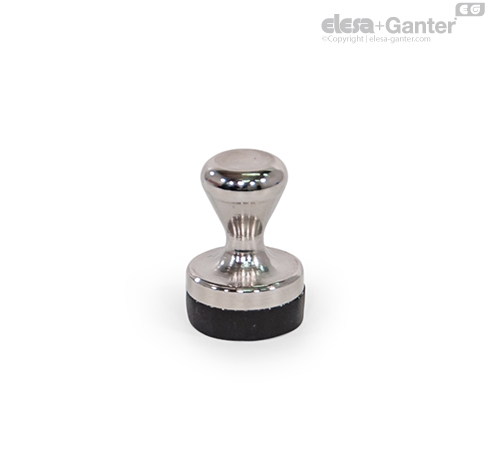

- Type B: With rubber underlay
Magnet material
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Housing
Steel ST
Nickel-plated
Rubber underlay (type B)
Elastomer (TPE)
Black
≈ 80 Shore A
Information
Magnets GN 53.4 work in combination with the ergonomic nickel-plated steel handle as a system for holding documents, templates, drawings etc. that are used in technical environments.
The neodymium magnet keeps the required contact diameter small while also supplying a high retaining force.
Type B also features a rubber underlay to protect sensitive surfaces from damage and ensure low noise on contact.
