Specification

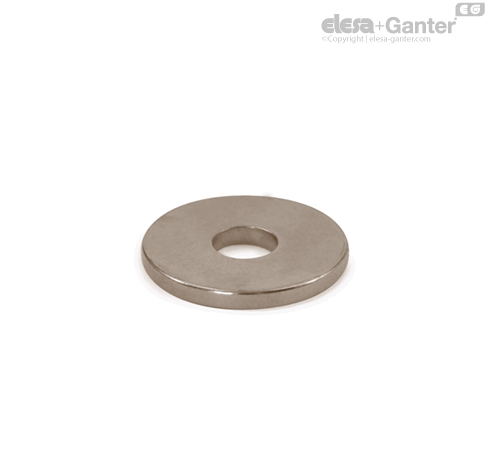

SmCo SC
Samarium, cobalt
Plain
Temperature resistant up to 350 °C

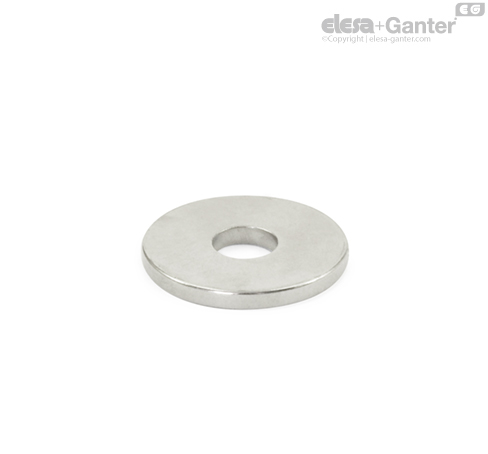

NdFeB ND
Neodymium, iron, boron
Nickel-plated
Temperature resistant up to 80 °C

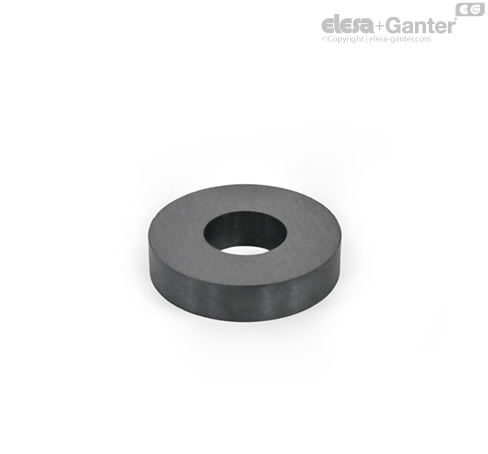

Hard ferrite HF
Plain
Temperature resistant up to 250 °C
Information
Raw magnets GN 55.1 are disk-shaped unshielded magnets.
They can be easily and securely fastened using the bore or countersunk. If no suitable retaining magnets or magnet systems are available, raw magnets may be used in combination with appropriate holding constructions to build up highly specific magnet systems.
When used without air gap, individual raw magnets always have lower magnetic forces than a magnet system in which shielding and magnetic return enormously intensify the force acting at the magnetic surface. Depending on the air gap between magnet and mating component, individual raw magnets, unlike magnet systems, can have substantially higher retaining forces.
