Main specifications
Knob
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Cap
Polypropylene based (PP) technopolymer, RAL 7021 (C9) black, RAL 2004 (C2) orange or RAL 7035 (C3) grey colour, matte finish, press-fit assembly.
Can be removed easily from the knob when not fitted to the indicator, if required.
Standard executions
- MDX-50-N: no graphic symbol.
- MDX-50-D: with arrow indicating clockwise increase.
- MDX-50-S: with arrow indicating anti-clockwise increase.
General information
Applications

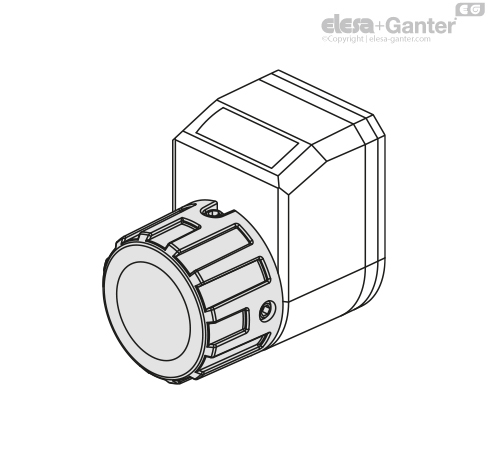

The MDX-50 knob is made to be fitted to mechanical position indicators DD50.
Accessories
Accessories on request
CA.VCT: polypropylene-based (PP) technopolymer cap, in Elecolors colours, matte finish, press-fit assembly. For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.
