Specification
Types

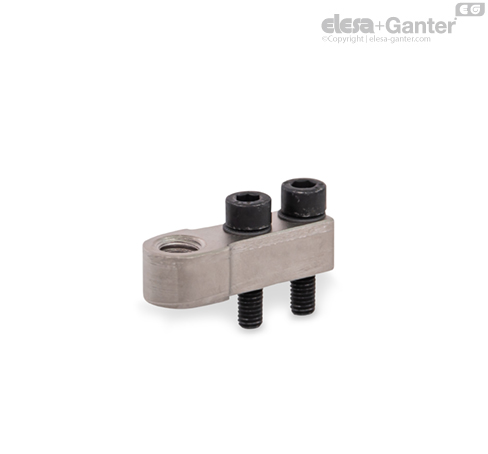

- Type E: For one clamping bolt

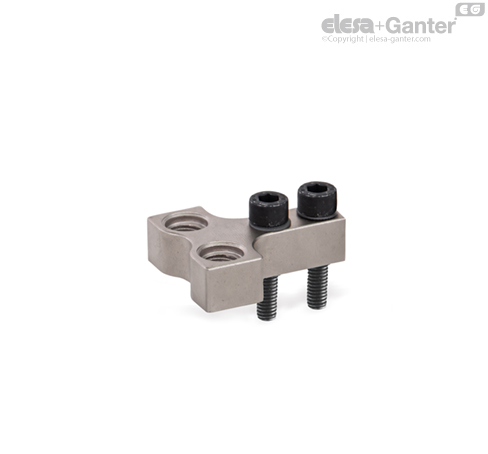

- Type Z: For two clamping bolts
Steel C 45
Chemically nickel plated NC
Socket cap screws DIN 912
Centering guide bushings
Steel, blackened
Information
Holders for clamping bolts GN 867 are suitable for use on clamping arms of the power clamps GN 864 / GN 865 / GN 866.
Holders for two clamping bolts (type Z) are preferably used in such applications where absolutely rigid clamping of a sheet metal component is essential. For the same purpose ball point screws GN 605 with serrated ball pads are ideally suited.
Socket cap screws and centering guide bushings are included.
