Specification
Types

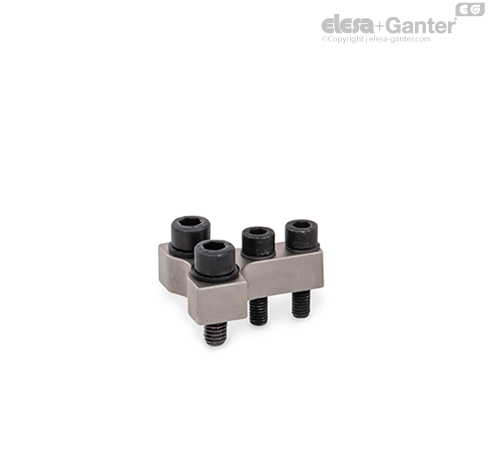

- Type R: Clamping jaws at right angle to clamping arm

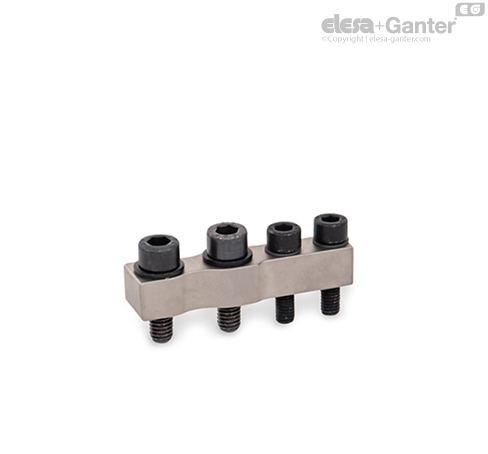

- Type P: Clamping jaws parallel to clamping arm
Steel C 45
Chemically nickel plated NC
Socket cap screws DIN 912
Centering guide bushings
Steel, blackened
Information
Holders for clamping jaws GN 868 are suitable for the clamping arms of the power clamps GN 864 / GN 865 / GN 866.
Holders for clamping jaws are equally precisely positioned on the clamping arm as are the clamping jaws GN 872 on the holders themselves.
When using type P, power clamps may be operated at up to a maximum of 6 bar.
Socket cap screws and centering guide bushings are included.
