Specification
Types
- Type APVS: Forked clamping arm, with two flanged washers
- Type CPVS: Forked clamping arm, with two flanged washers and clamping screw GN 708.1

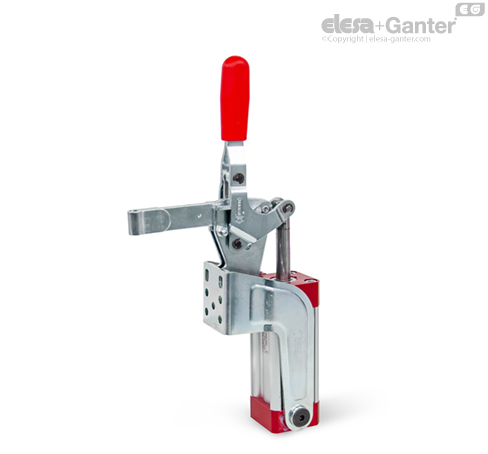

- Type EPVS: Solid clamping arm, with clasp for welding
Coding
- Coding M: Magnetic piston
Sheet metal parts
Case-hardened steel C10
Zinc plated, blue passivated
Bearing rivets
Case-hardened
Air cylinder bearing pins
Case-hardened
Double-action air cylinder
Max. pressure 6 bar
All moving parts
Lubricated with special grease
Solid moulded plastic handle sleeve
Red, oil resistant
Clamping screw GN 708.1, type A
- Steel, zinc plated, blue passivated
- Rubber thrust pad 85 Shore A
Information
Toggle clamps GN 862.1 are built from the same construction as GN 862.
The special features of these clamps are that they can be mounted in two different planes, and they can also be operated manually via the grip handle. For example, they can individually be manually closed, and then all clamps can be opened at once via the pneumatic function.
To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.
Toggle clamps GN 862.1 have a permanent magnet integrated into the piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
