Specification
Types
- Type E: For one clamping bolt
- Type Z: For two clamping bolts
Steel C 45
Chemically nickel plated NC
Socket cap screws DIN 912
Centering guide bushings
Steel, blackened
Information
Static holders GN 867.1 have been designed for use with power clamps GN 864.

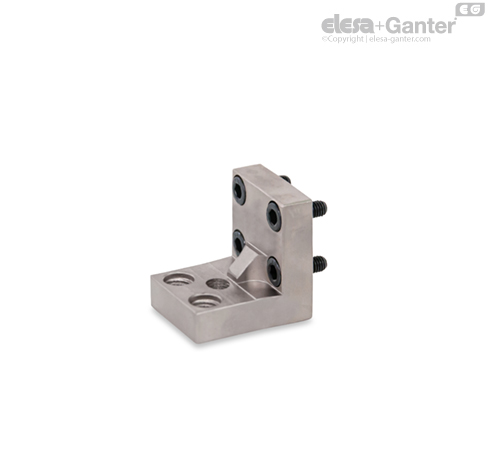

Static holders with two clamping bolts (Type Z) are preferably used for rigid clamping of sheet metal components.
For the same purpose ball point screws GN 605 with serrated ball pads are ideally suited.
Socket cap screws and centering guide bushings are included.
