Specification
Types
- Type A: U-bar version, with two flanged washers
- Type C: U-bar version, with two flanged washers and GN 708.1 spindle assembly
- Type E: Solid bar version, with clasp
Version in Steel
- Case-hardened Steel C10, zinc plated, blue passivated
- Bearing rivets (for size 230 and up), case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
Version in Stainless Steel NI
Stainless Steel AISI 304
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
Information

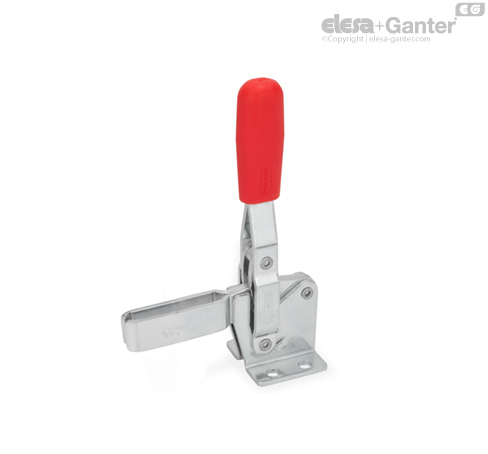

GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.
Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C.
Type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN 809 clamp mounts to hold the work piece in place.
