Specification
Identification no.
No. 2: With 2 stainless steel socket cap screws DIN 912
Black, RAL 9005, textured finish SW
- Plain, matte shot-blasted BL
Stainless steel AISI CF-8 NI
Matte shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information

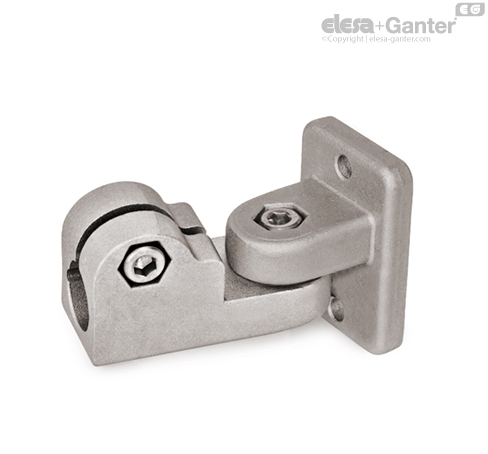

Swivel clamp connector joints GN 281 are an assembly of the swivel clamp connectors GN 271 and GN 275 .
The clamping bore is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw location z1, the socket cap screw reduces the bore cross-section for clamping.
For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 /GN 911.3 listed in the table as accessory.
