Specification

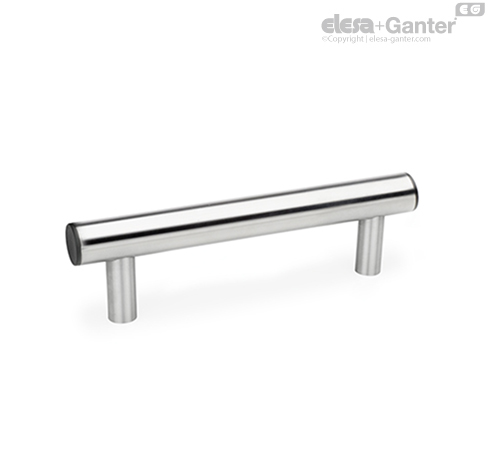

- Type K: With plastic cover
- Type E: With stainless steel cover cap
Stainless steel AISI 304, wall thickness 1,5 mm
Matte shiny finish, ground
Stainless steel AISI 304
Matte shiny finish, ground
- Plastic, thermoplastic elastomer (TPE)
- Black, matte finish for type K
- Stainless steel AISI 304 for type E
Information
Type E of tubular handles GN 666.5 is completely made of A2 stainless steel.
Mounting sketch
Example of applicationTubular handles GN 666.5 allow the mounting of a pair of handles in opposite position. This method could be used on doors (double handle).
Generally a modification of the thread length l4 is required for this. The included threaded pin DIN 913-M8x25-A2 of the mounting stud needs to be replaced by longer threaded pin, too.
Handles with a modified thread length l4 are available on request.
