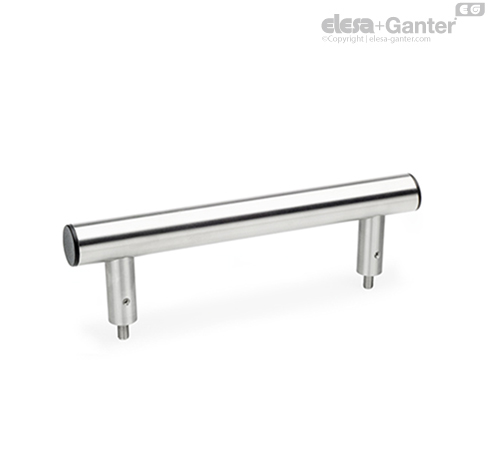

GN 666.7-K Tubular Handles With plastic cover

For a mounting of tubular handles GN 666.7 (mounting from operator‘s side) the stud is first screwed in from the machine side with the threaded pin DIN 913-M8x25 (included) and then the handle is pushed on and secured with the grub screw DIN 914-M5.

Type E of tubular handles GN 666.7 is completely made of A2 stainless steel.

Tubular handles GN 666.7 allow the mounting of a pair of handles in opposite position. This method could be used on doors (double handle).

Generally a modification of the thread length l₄ is required for this. The included threaded pin DIN 913-M8x25-A2 of the mounting stud needs to be replaced by longer threaded pin, too.

Handles with a modified thread length l₄ are available on request.
