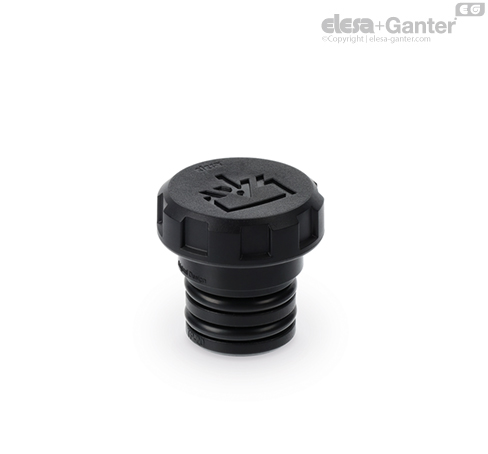

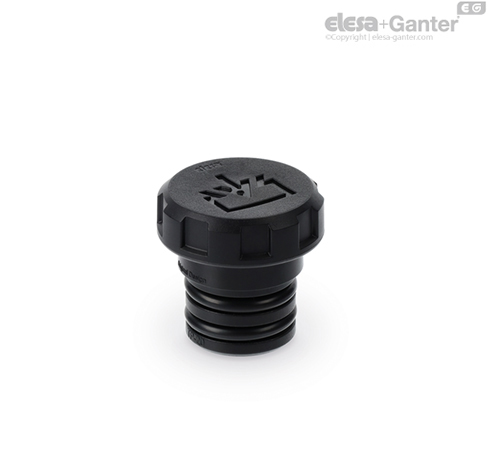

TP-CF Push-fit fill plugs With side breather hole

Material

Polyamide based (PA) technopolymer, black colour RAL 9005 (C9) or orange colour RAL 2004 (C2), matte finish.

Packing rings

Two NBR synthetic rubber O-rings.

Standard executions

• TP-C: without side hole.

• TP-CF: with side breather hole.

Maximum continuous working temperature

100°C.

Graphic symbol "fill"

According to DIN regulations.

Mounting

Push-fit avoids the need to screw/unscrew.
