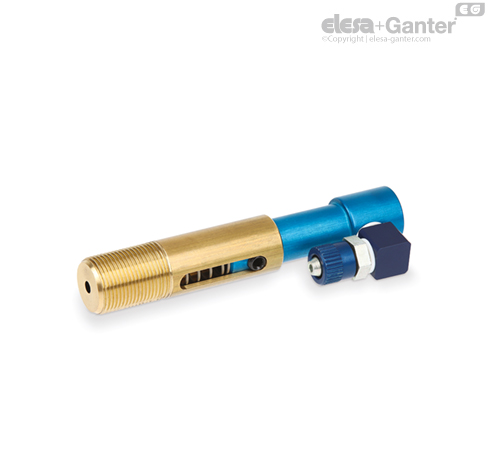

VPE-F-L Mini vacuum cup with built-in spring suspensions Female threaded connection and L-shaped quick fitting

Features

VPE vacuum cup suspensions comprise:

• a brass stem to fix the vacuum cup to the automation device;

• a spring to cushion the impact of the vacuum cup and at the same time maintain a constant pressure with the load to be lifted;

• a quick fitting for connection to the suction hose.

Characterised by reduced dimensions and weight to satisfy particular requests in industrial automation. The particular shape of the brass shank for fixing the vacuum cup suspension to the automation device prevents the rotation of the vacuum cup.

The effective spring stroke is functional to the length (l2) of the stem, in particular:

• 15 mm for length 72 mm

• 20 mm for length 87 mm

Compatible with 4x6 diameter plastic tube.

See Technical Data for vacuum cups .
