Main specifications
Material

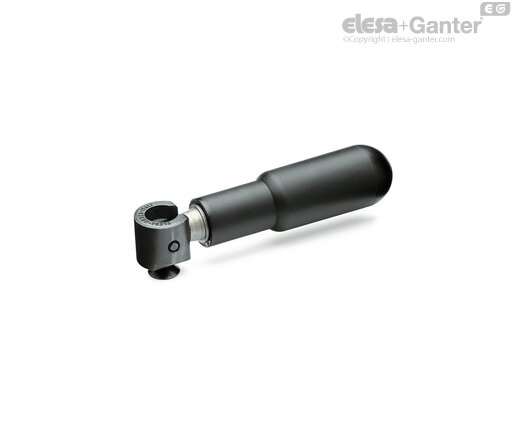

Polyamide based (PA) technopolymer handle, black colour, matte finish.
Standard executions

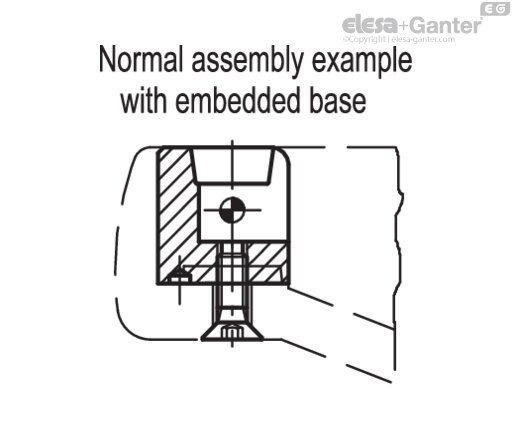

- IR.620: black-oxide steel stud, sintered and oxidised steel flat base for embedded mounting, black-oxide steel screw.
- IR.620-SST: AISI 303 stainless steel stud, sintered A2 stainless steel flat base for embedded mounting, AISI 303 stainless steel screw.
General information
Features and applications
Handle pivots freely during operation: a system of coaxial bushings compensates return spring load.
This series of fold-away handles has been designed for all those applications for which, owing to lack of space or for safety reasons, the handle must be folded-away once the operation has been completed.
