Specification
Function element 1 / Function element 2
- Type LK: Indicator light red / green (bi-color) (no switching function)
- Type RK: Button, latching with LED, red / green (bi-color)
- Type RO: Button, latching without LED
- Type TK: Button, with LED, red / green (bi-color)
- Type TO: Button, without LED
Connection types
- Type K2: Cable, end open, 2 m
- Type K5: Cable, end open, 5 m
- Type S025: Cable with plug, 0,25 m
Handle
Zinc die casting
Powder coated
- Black, RAL 9005, textured finish SW
- Silver, RAL 9006, textured finish SR
Button / Indicator light housing
Cable (Outer sheath)
Light guide
Plastic
Crystal-clear Polycarbonate (PC)
Information
Cabinet U-handles GN 422 are used to operate covers and doors. The buttons integrated into the handle can send electrical control signals, and the LEDs can indicate the status of a machine control, for example.
The handle is available with either 1 or 2 function elements. The LEDs light up red or green depending on the polarity at the connections.
Complementary cabinet U-handles without switching function are available as GN 422.1.
Security Information
The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at elesa-ganter.com.

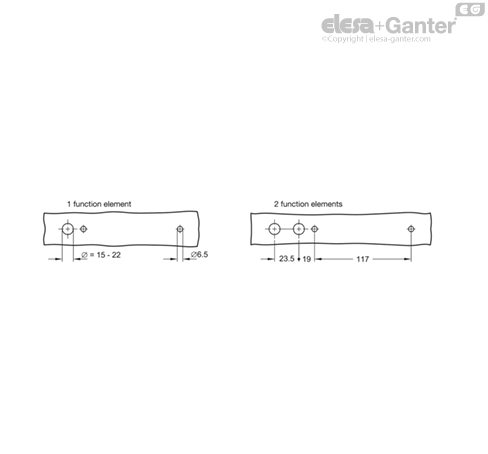

Installation Holes
The holes must be free of burrs to prevent damage to the cable.
