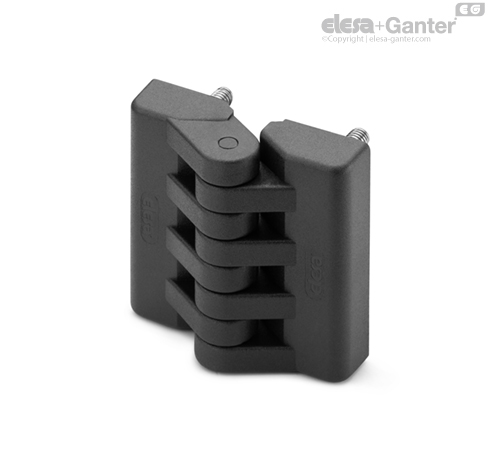

CFAX-p Hinges Threaded studs

Rotation angle (approximate value)

Max 215° (-35° and + 180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical peformance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.





Resistance tests	AXIAL STRESS		RADIAL STRESS		90° ANGLED STRESS
Description	Maximum working load Ea [N]	Load at breakage Ra [N]	Maximum working load Er [N]	Load at breakage Rr [N]	Maximum working load E90 [N]	Load at breakage R90 [N]
CFAX.40 B-M4	200	1850	240	2000	100	560
CFAX.40 SH-4	130	1870	290	1800	280	1370
CFAX.40 CH-4	137	1340	230	1580	180	1200
CFAX.49 B-M5	400	2400	440	2760	170	1320
CFAX.49 p-M5x14	370	3070	360	2400	200	900
CFAX.49 SH-5	300	2660	310	2600	320	2240
CFAX.49 CH-5	360	2480	310	2270	250	1460
CFAX.65 B-M6	640	4000	690	4400	220	1400
CFAX.65 p-M6x18	510	5800	460	4500	220	3190
CFAX.65 SH-6	520	4300	720	4800	240	3760
CFAX.65 CH-6	510	3700	490	5200	260	2870

Other executions available

CFK.: false hinge with single body.
