Main specifications
Material
Glass-fibre reinforced polyamide (PA) SUPER-technopolymer, black or grey colour RAL 7040 (C33), matte finish.
Rotating pin
Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour.
Standard execution
Pass-through holes for M6 countersunk head screws.

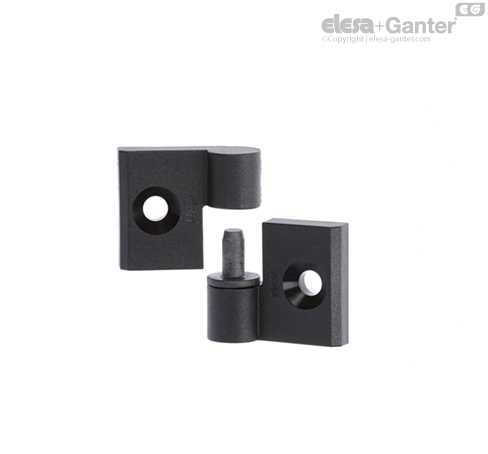

- CFGY-D: rotation pin fitted on the right hinge body.

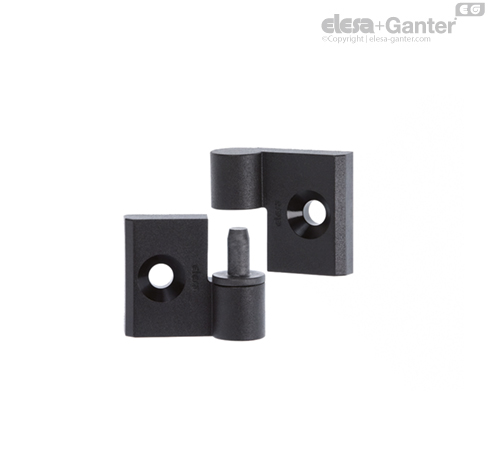

- CFGY-S: rotation pin fitted on the left hinge body.
General information
Features and applications
This type of hinge can be used with profiles of 40 mm, with slot dimensions from 8 to 10 mm.
Rotation angle (approximate value)
Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
To choose the convenient type and the right number of hinges for your application, see the Guidelines.
| Resistance tests | AXIAL STRESS | RADIAL STRESS | 90° ANGLED STRESS |
 |  |  |
| Description | Maximum working load
Ea [N] | Load at breakage
Ra [N] | Maximum working load
Er [N] | Load at breakage
Rr [N] | Maximum working load
E90 [N] | Load at breakage
R90 [N] |
| CFGY.40/40 | 190 | 1020 | 190 | 930 | 170 | 830 |
