Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Self-adhesive front plate
Anodised aluminium.
Standard executions
- MT.: with revolving handle I.780+x in technopolymer. Black-oxide steel hub, H9 blind hole or H7 reamed pass-through hole.

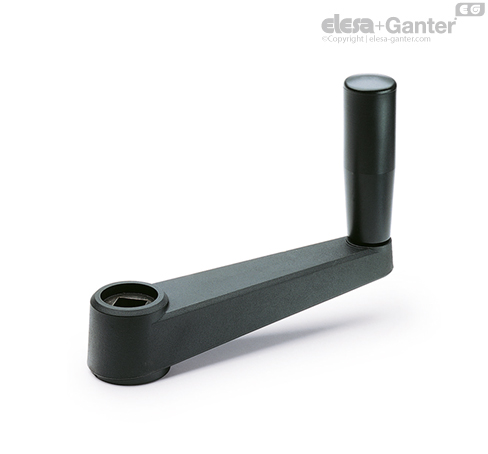

- MT-AS: with revolving handle I.780+x in technopolymer. Black-oxide steel boss with H9 square pass-through hole.
MT.50-AS H9 square pass-through hole with brass reinforcement.

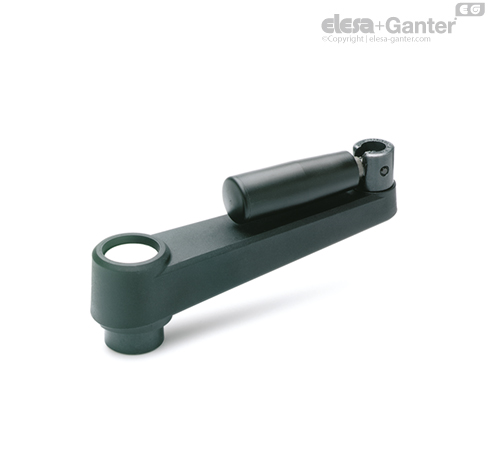

- MT+IR: with fold-away handle IR.780. Black-oxide steel hub, H9 blind hole or H7 reamed pass-through hole.
General information
Features and applications
The reticular structure of the crank arm and the technopolymer used make this handle very strong and therefore suitable for transmitting high torque values.
Accessories on request
Accessories on request
Axial retaining washer GN 184.
Other executions
Special executions on request
Crank handles with cross holes according to GN 110.
