Main specifications
Material
Aluminium, epoxy resin coating, black colour, matte finish.
Standard executions
H7 reamed through hole.
Revolving handle (for +I versions)I.621+x- in polyamide based (PA) technopolymer, black colour, matte finish.
- VAD-GXX: for gravity indicators, without handle.

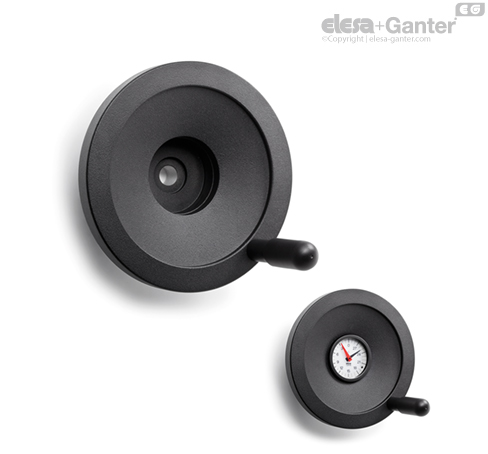

- VAD-GXX+I: for gravity indicators, with handle.

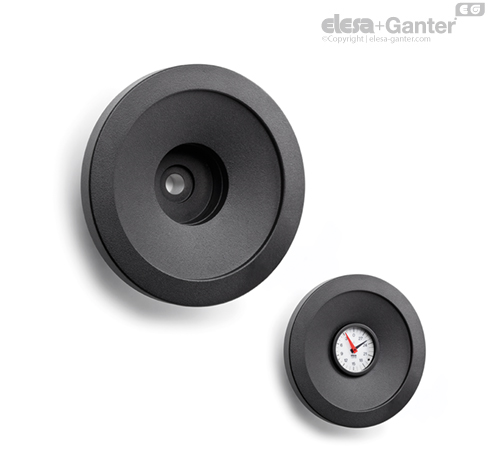

- VAD-PXX: for positive drive indicators, without handle.
- VAD-PXX+I: for positive drive indicators, with handle.
Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.
General information
Indicator choice (to be ordered separately)
To choose the indicator see the table below for possible assembly with indicators.
See also "Assembly instructions" for gravity indicators type G or positive drive indicators type P.
Other executions
Special executions on request
Handwheels with cross holes according to GN 110.
