Main specifications
Covering
Grey anti-trace rubber.
Wheel centre body
Polypropylene-based (PP) technopolymer.
Rolling action
Hub with pass-through hole.
Turning plate bracket
Electrolytically zinc-plated steel sheet bracket.
The presence of a double ball race and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.
Front-actuated brake
Total brake that locks rotation of the wheel and the technopolymer bracket.
The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.
Standard executions

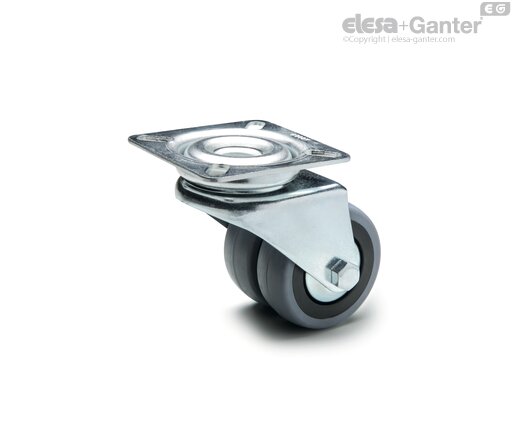

- SBL-G: turning plate bracket, without brake.

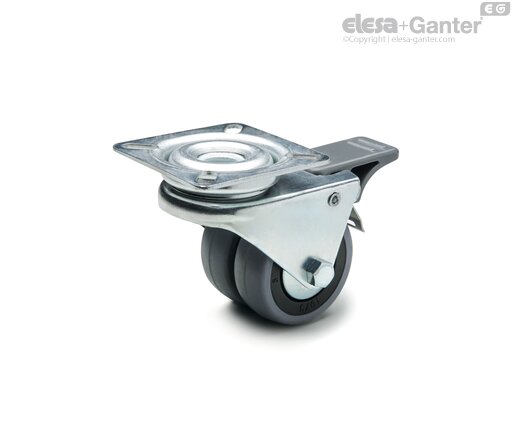

- SBF-G: turning plate bracket, with brake.

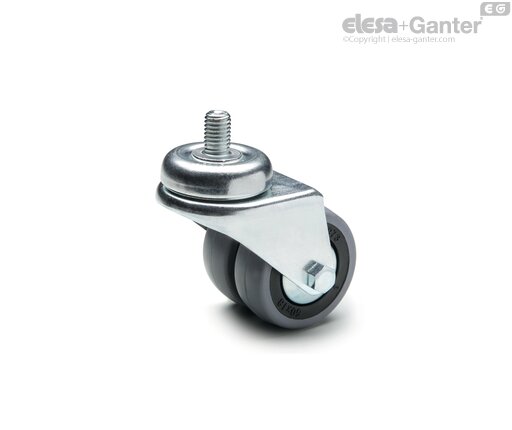

- CBL-G: turning plate bracket and threaded centre pin, without brake.

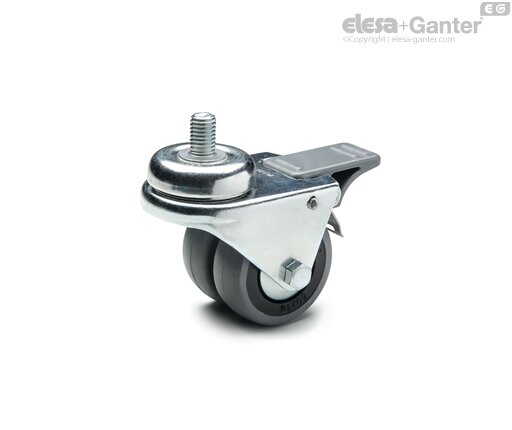

- CBF-G: turning plate bracket and threaded centre pin, with brake.
General information
Applications
Wheels for the general public with high carrying capacity, excellent smoothness and elasticity features.
Environmental conditions
The twin wheels RE.C7-G are suitable for use in humid environments and in the presence of medium-aggressive chemical environments; use in environments with the presence of organic, chlorinated solvents, hydrocarbons and mineral oils is not recommended.
