Main specifications
Standard components

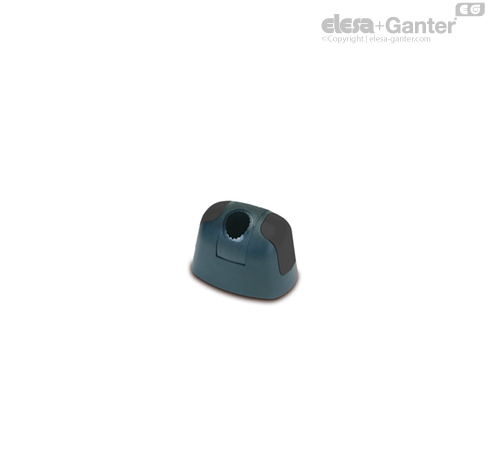

- MSR.60-B base: glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
- CC-MSR.60 screw-covers: polyester based (PBT) technopolymer in six colours, glossy finish press-fit assembly. Supplied, removable by a screwdriver.
Available also as accessories sold separately (see table).
- MSR.60-C Two-way clamp: glass-fibre reinforced technopolymer, black colour, matte finish.
- MSR.60-TA-TB-TC-TD-TE-TF device clamps: glass-fibre reinforced technopolymer, black colour, matte finish.
- MSR.60-T13 connecting tubes: aluminium profile available with standard lengths from 100 to 2000 mm.
On request and for sufficient quantities other lengths are available.
Available also as accessory sold separately (see table).
General information
Features and applications
MSR. connecting clamps, designed according to ELESA patent, allow an easy and efficient connection between the components, preventing the risk of rotating freely.
The system allows the axial, perpendicular or angled positioning of the connecting tube to the base.
Advantages
The slot-shaped connecting tube preventing free rotation.
Tube and components clamped by the aid of only one screw.
Easy adjustments by five degrees of freedom of the clamped devices (see drawing).
Lack of cavities to avoid the deposit of dirt and undesired substances.
Easy identification of the clamped device using different coloured caps on the base.
