Main specifications
Material
Polypropylene-based (PP) technopolymer, high UV resistance, RAL 9005 black colour.
Standard executions
Fastening holes for cylindrical-head or hexagon-head screws.
- DCE-S-2-3-4-5-6-7: with two holes.
Working temperature
From -30 °C to +90 °C.
General information
Features and applications

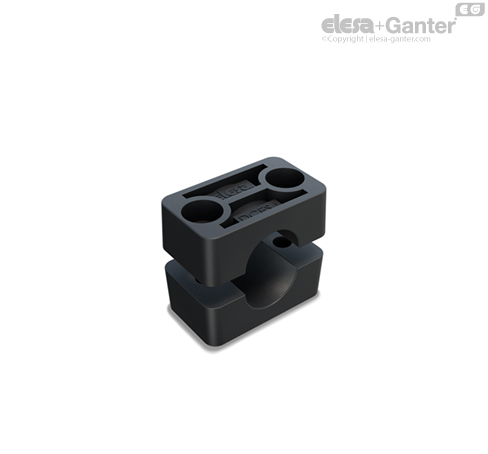

The standard series tube clamp, designed according to DIN 3015-1, provides secure fastening for rigid pipes or flexible cables, effectively minimising vibrations and noise.
In particular, the DIN regulation defines specific reference groups based on the overall dimensions of the collar bodies.
The table shows the correspondence between the DIN 3015-1 group and the corresponding DCE-S group.
The special internal knurling of the two half clamps enables a high level of grip between the clamp and the tube, thus ensuring high stability.
They are used both in industrial hydraulics as a fastening system for the construction of rigid pipes (liquids or gases) and in mobile hydraulics (material handling machines, agricultural vehicles) for the construction of hydraulic or pneumatic systems.
They are also used in the rail and naval sectors.
See Tube clamps technical data.
| Correspondence between the DIN 3015-1 group and the DCE-S group |
|---|
| DIN 3015-1 group | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| DCE-S group | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Accessories on request
Accessories
For the assembly kit DCK-S.
