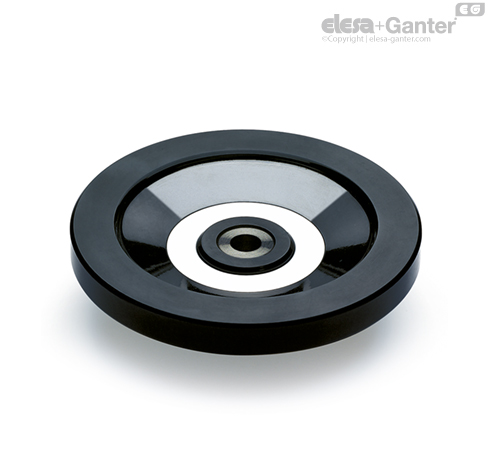

VDN.FP-SST-A Solid handwheels Without handle, drilled hub

Material

High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.

Ring

Matte anodised aluminium.

(ELESA Original design - Reg. U.S. Pat. & TM Off.)

Standard executions

AISI 303 stainless steel hub with H7 reamed hole.

H9 reamed hole for executions with keyway.

• VDN.FP-SST-A: without handle.
• VDN.FP+I-SST-A: with revolving handle I.301+x in Duroplast.
• K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

73695-10-K VDN.80 FP-SST-A-10-K

AISI 303 stainless steel hub not drilled in order to make holes different from the standard:

• VDN.FP-SST: without handle.
• VDN.FP+I-SST: with revolving handle I.301+x in Duroplast.
