| | Greetings to you all, Innovation never stops! Discover the automation of the clamping action, the new electrical level indicator with LED, new sensor holders for toggle clamps, the new bridge handle certified self-extinguishing UL-94 V0, and the latest released snap latches! Visit our website to find out more. Enjoy reading! Your Elesa+Ganter Team |
|
|
|---|
|

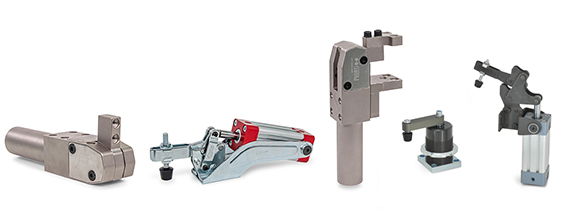

Automation of the Clamping Action |
|
|
|---|
|
Elesa+Ganter offers a large selection of pneumatically operated clamps, power clamps and swing clamps. They differ primarily in terms of their clamping principle, size, ease of operation and holding force.
Pneumatically operated toggle clamps: These clamps are technically identical to manual toggle clamps, except that the clamping mechanism is actuated by a pneumatic cylinder. Power clamps: These pneumatically operated clamps feature a high clamping force together with compact dimensions.
Swing clamps: These pneumatically operated clamps are used when the clamping point must be freely accessible for inserting and removing the workpiece. The clamping action is divided into a swinging movement of the clamping arm and a linear clamping motion. |
|
|
|---|
|

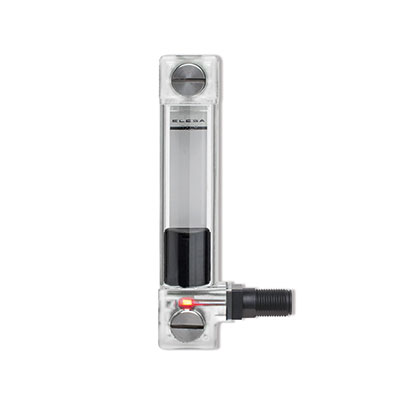

HCV-E-LD Electrical Level Indicator with LED | HCV-E-LD electrical level indicator is made of polyamide based technopolymer, which guarantees highly resistant to shocks, solvents, oils with additives, aliphatic and aromatic hydrocarbons, petrol, naphtha, phosphoric esters. In addition to the visual level indicator, it also provides an electrical signal when the minimum fluid level value is reached and a green or red light signal indicating the presence or absence of fluid. | | |
|
| |
|---|
|
| | Sensor Holders
GN 801.3 and GN 801.4 | Sensor holders GN 801.3 and GN 801.4 for toggle clamps are designed as accessories for GN 810 and GN 820 series toggle clamps and enable contactless monitoring of the clamping positions using an inductive sensor. When the clamping lever is in clamping position, the sensor electronics provide a high signal, e.g. to a machine control unit, and additionally indicate this switch status with an LED on the sensor. | | |
|
|
|---|
|

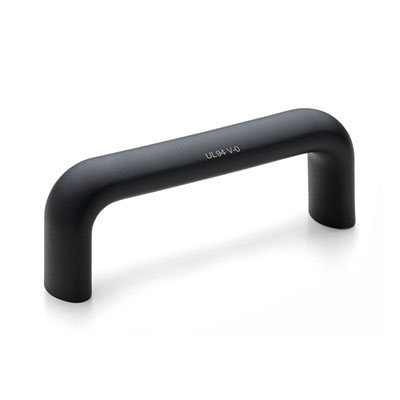

M.643-AE-V0 Bridge Handle | M.643-AE-V0 handle is made of glass-fibre reinforced polyamide based technopolymer certified self-extinguishing UL-94 V0. The "V0" certification in accordance with UL-94 V (Underwriters Laboratories) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating any incandescent drops. | | |
|
| |
|---|
| | Snap LatchesGN 449.5 | Snap latches GN 449.5 combine the function of a gripping tray with that of a snap latch to provide an easy way to keep doors, covers and hoods closed.
Once the mounting hole has been drilled, the housing is inserted into the hole in the door body when actuated and the mounting ring is pushed on from behind. The housing and mounting ring are connected with two supplied pan head screws. | | |
|
|
|---|
| | | | Join Us on LinkedIn | By following us on LinkedIn, you can have detailed technical information about innovative products, applications, usage areas, explanation videos, the latest news about our company. | | |
|
|
|---|
|
