Specification
Profile types
Aluminum
Anodized, natural color N
Information
Aluminum profiles GN 10b are produced by extrusion molding. They can be used, for example, to easily construct protective enclosures, workplace equipment or jigs.
Aluminum profiles in combination with the removable and reusable accessories form a flexible modular system. Attachments can be fastened to either the slots or the end faces via the holes.
The profile type light is typically used for small loads or for weight-optimized constructions.
Aluminum profiles are supplied in bundles. The table shows the quantity included in each bundle.
Mechanical Data (in Extrusion Direction)
- Material: Al Mg Si 0.5 F25 (EN AW – 6063)
- Delivery condition: Artificially aged
- Anodized coating: E6EV1 (natural color), layer thickness: 10 μm
- Dimensional deviations as per DIN EN 12020-2
- Tensile strength Rm min. 245 N/mm²
- Yield point Rp0,2 min. 195 N/mm²
- Density 2.7 kg/dm³
- Linear expansion coefficient 23,6x10-6 1/k
- Modulus of elasticity E ≈ 70,000 N/mm²
- Hardness ≈ 75HB -2.5/187.5

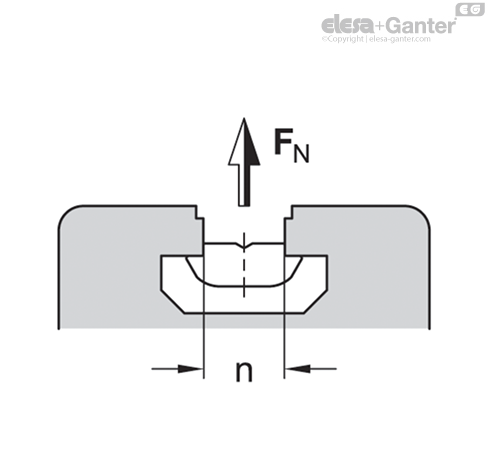

Permissible Tensile Load on the Slot
| n | Grid size | Profile type | FN* in N |
| - | - | - | With T-nuts GN 50b | With T-slot nuts GN 51b | With T-slot bolts GN 52b |
| - | - | - | Type V / F | Type S | - | - |
| 8 | 30 | Heavy | 2500 | 6000 | 3000 | 3500 |
| 10 | 40 | Light | 7500 | - | 5500 | 9000 |
| 10 | 45 | Light | 7500 | - | 5500 | 9000 |
| 10 | 45 | Heavy | 8500 | 17500 | 7500 | 9000 |
* Depending on the thread size of the T-nut / T-slot nut / T-slot bolt

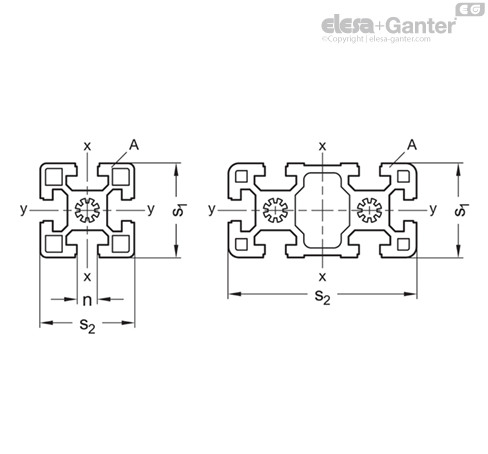

Cross-Section Properties
Wx, Wy = Axial resistance torque against bending
lx, ly = 2nd moment of area against bending
A = Cross-section area
m = Length-related mass
| GN 10b Profile type light |
| s1 | s2 | n | Grid size | Bending axis x-x | Bending axis y-y | A | m ≈ |
| - | - | - | - | lx in cm4 | Wx in cm3 | ly in cm4 | Wy in cm3 | in cm2 | in kg/m |
| 40 | 40 | 10 | 40 | 9.06 | 4.53 | 9.06 | 4.53 | 5.61 | 1.51 |
| 40 | 80 | 10 | 40 | 63.2 | 15.8 | 17.2 | 8.61 | 9.86 | 2.67 |
| 45 | 45 | 10 | 45 | 11.7 | 4.89 | 11.7 | 4.89 | 5.73 | 1.55 |
| 45 | 90 | 10 | 45 | 81.8 | 18.2 | 23.5 | 10.5 | 11.3 | 3.05 |
| 80 | 80 | 10 | 40 | 132.6 | 33.2 | 132.6 | 33.2 | 18.5 | 4.98 |
| 90 | 90 | 10 | 45 | 210.5 | 46.8 | 210.5 | 46.8 | 23.5 | 6.34 |
| GN 10b Profile type heavy |
| s1 | s2 | n | Grid size | Bending axis x-x | Bending axis y-y | A | m ≈ |
| - | - | - | - | lx in cm4 | Wx in cm3 | ly in cm4 | Wy in cm3 | in cm2 | in kg/m |
| 30 | 30 | 8 | 30 | 2.77 | 1.85 | 2.77 | 1.85 | 3.14 | 0.85 |
| 30 | 60 | 8 | 30 | 5.09 | 3.39 | 19.7 | 6.55 | 5.53 | 1.49 |
| 45 | 45 | 10 | 45 | 13.9 | 6.91 | 13.9 | 6.91 | 7.5 | 2.03 |
| 45 | 60 | 10 | 45 | 37.6 | 12.5 | 22.7 | 10.1 | 11.1 | 3.01 |
| 45 | 90 | 10 | 45 | 124.1 | 27.6 | 32.3 | 14.3 | 15.2 | 4.12 |
| 90 | 90 | 10 | 45 | 302.0 | 67.1 | 302.0 | 67.1 | 38.9 | 10.5 |
