GN 32i-2 Angle Connectors Single and double installation

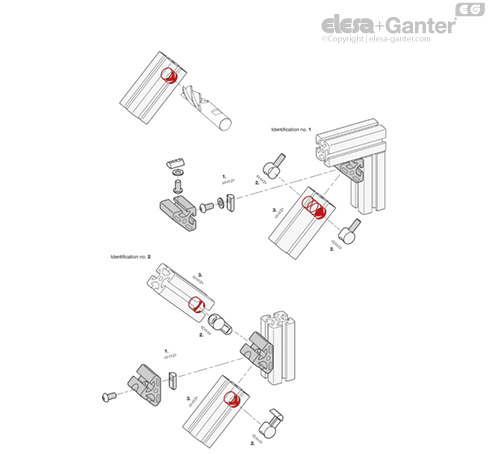

Angle connectors GN 32i (identification no. 1) fasten aluminum profiles together at right angles and are primarily used for creating corner braces at 45° angles. Angle connectors GN 32i (identification no. 2) fasten single or double braces to aluminum profiles at an angle of 45°.

The braces are fastened with universal connectors GN 22i . This requires their anti-twist protection to be removed (identification no. 1) and the profile to be machined (identification no. 1 and 2).

• Universal Connectors GN 22i

• T-Nuts GN 50i
